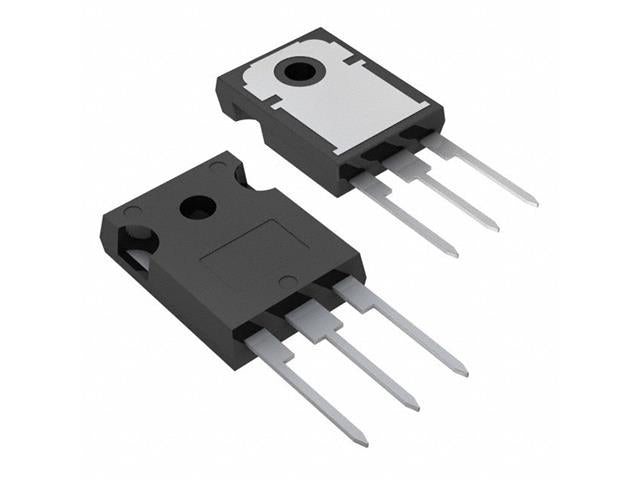

STW13NK60Z

Name: STW13NK60Z - Communica [Part No: STW13NK60Z]
Brand: Communica
SKU: STW13NK60Z
Price: 68.38 ZAR
Availability: OutOfStock

SKU: STW13NK60Z

BRAND: Communica

Sold Out
R 78.64_{(inc VAT)}
R 68.38_{(ex VAT)}

MOS N-Channel 13A 600V 0,55R TO-247

MOS N-Channel 23A 600V

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	550mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	92 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2030 pF @ 25 V
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3

Device

Transistor
