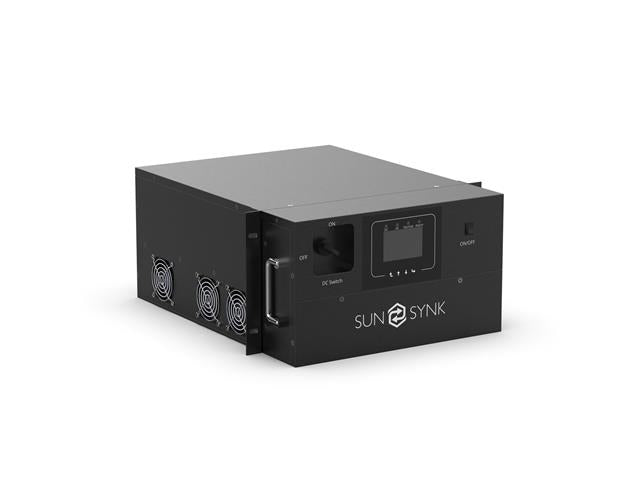

SUNSYNK 1P Hybrid Rack Mount PV Inverter 7.6KW, Battery Voltage:40~60V, Max Charge/Discharge Current 190A, PV Input Voltage:370V(100V~500V), Self-Adapt to BMS, MAX DC I/P PWR:9880W, 2xMPPT 125~425V PV I/P Current:22A+22A, MAX AC O/P PWR:8360W, RS485/CAN,
1P Hybrid Rack Mount PV Inverter
Specifications
Battery Input Data
- Battery Type : Lead-acid or Lithium-ion
- Battery Voltage Range : 40~60V
- Max. Charging Current : 190A
- Max. Discharging Current : 190A
- Charging Curve : 3 Stages/Equalization
- External Temperature Sensor : Optional
- Charging Strategy for Li-Ion Battery : Self-Adaptation to BMS
PV String Input Data
- Max. DC Input Power : 9880W
- PV Input Voltage : 370V (100V~500V)
- MPPT Range : 125~425V
- Start-up Voltage : 150V
- PV Input Current : 22A+22A
- No. of MPPT Trackers : 2
- No. of Strings Per MPPT Tracker : 2+2
AC Output Data
- Rated AC Output and UPS Power : 7600W
- Max. AC Power : 8360W
- Peak Power (off-grid) : 2 times of rated power, 10 S
- AC Output Rated Current : 31.7A/33A
- Max AC Output Current : 34.9A/36.3A
- Max Continuous AC Passthrough : 50A
- Output Frequency and Voltage : 50/60Hz; 120/240Vac(split phase), 208Vac(2/3), 230Vac(single phase)
- Grid Type : Split phase, 2/3 phase, Single phase
- Current Harmonic Distortion : THD<3%(Linear load<1.5%)
Efficiency
- Max. Efficiency : 97.60%
- MPPT Efficiency : 96.50%
- Euro Efficiency : 99.90%
Integrated Protection
- PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Ou-tput Shorted Protection, Output Over Voltage Protection
Certifications and Standards
- Grid Regulation : UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98,G99,
- IEC61683, IEC62116, IEC61727
- Safety Regulation : IEC62109-1, IEC62109-2
- EMC : EN61000-6-1, EN61000-6-3, FCC 15 Class B
General Data
- Operating Temperature Range : -25~60°C, >45°C Derating
- Cooling : Fan
- Noise : <30
- Communication with BMS : RS485; CAN
- Warranty : 5 years
Downloads
Additional Information
| Device |
Inverter |
| Type |
1P | Hybrid | Rack Mount | PV |
Upgrade your solar power system with the SUNSYNK 7.6KW Hybrid Rack Mount PV Inverter. Designed for efficiency and versatility, it features dual MPPT tracking, advanced battery management, and a peak power output of 8360W. Enjoy reliable energy production and protection with integrated safety features, making it the perfect choice for sustainable living.
