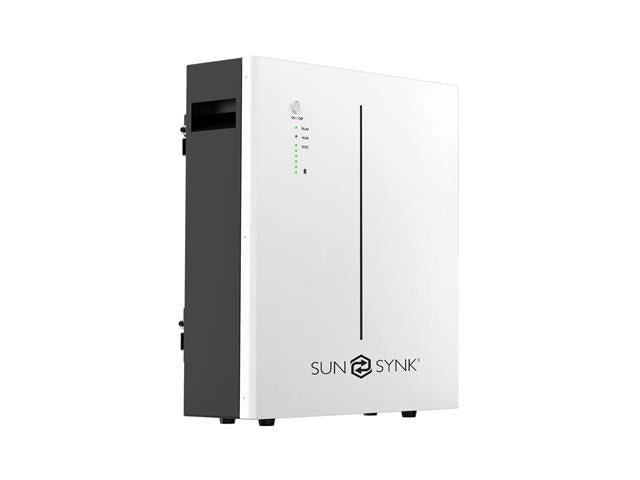

SUN-BATT-5.32KWH-WM

SKU: SUN-BATT-5.32KWH-WM

BRAND: Sunsynk


SUNSYNK Li-Ion Battery LFP Wall Mount 5.32KWH 51.2VDC 104AH, Charge Voltage:55.68~56.16VDC, Discharge Voltage:45.6~56.16Vdc, Charge/discharge Current:50A 2500W, Short Circuit Current:350A, RS232/RSS485/CAN , 6000 CYCLES 80% DOD, IP20, 450×150×533mm, 45Kg

Li-Ion Battery LFP Wall Mount

Features

  • More Usable Energy : 100% Depth of Discharge
  • Flexible Investment : Scalable from 5.32 to 42.56 kWh
  • Safe & Reliable : Premium Lithium Iron Phosphate(LFP) 6000 cycles
  • Easy Installation : Wall Mounted
  • High Energy Density : Propprietary CTP Technology
  • Perfect Compatibility : Compatible with Major PCS Brand
  • Quick Commissioning : One Button ON/OFF Automatic ID Assignment

Specifications

  • Nominal Voltage : 51.2 VDC
  • Nominal Capacity : 104Ah
  • Battery Energy : 5320 Wh
  • Charge Voltage : 55.68~56.16Vdc
  • Discharge Voltage : 45.6-56.16 Vdc
  • Nominal Charge/Discharge Current : 50A
  • Nominal Charge/Discharge Power : 2500W
  • Max Charge / Discharge Current : 100A
  • Max Charge / Discharge Power : 5000W
  • Short Circuit Current : 350A

Communication

  • Display : SOC status indicator, LED indicator
  • Communication : RS232、RS485、CAN

General Specification

  • Dimension( W×D×H mm ) : 450×150×533mm
  • Weight (Kg) : 45kg
  • Installation : Floor stand or Wall mounted
  • Working Temperature : -20°C ~ 60°C
  • Storage Temperature : ≤25°C,12 months; ≤35°C,6 months; ≤45°C,3 months
  • Operating / Storage / humidity : ≤ 95%RH
  • Max Operating Altitude : ≤2000m
  • IP Rating : IP20
  • Cell Technology : LiFePO4,Lithium Iron Phosphate
  • Cycle life : 6000 Cycles @ 80% DOD / 25°C / 0.5C,60% EOL
  • Scalability : Max 8 batteries in parallel

Downloads

Additional Information

Device Battery
Type Li-Ion | LFP | Wall Mount
