TA8261H

Name: TA8261H - Communica [Part No: TA8261H]
Brand: Communica
SKU: TA8261H
Price: 54 ZAR
Availability: InStock

SKU: TA8261H

BRAND: Communica

R 62.10_{(inc VAT)}
R 54.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Amplifier ICs

Category: Audio Power Amplifier ICs

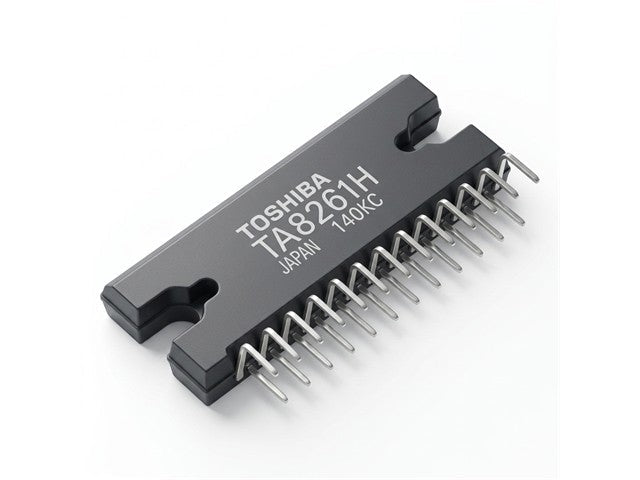

Audio Power IC 4CH X 40W BTL

Specifications

Part Number: TA8261H
Description: 4-Channel BTL Audio Power Amplifier IC
Manufacturer: Toshiba
Amplifier Type: BTL (Bridge-Tied Load) Audio Power Amplifier
Channels: 4 Channels (Quad Audio Amplifier)
Maximum Output Power:
- 4 × 41 W (typ.) @ 14.4 V, 4 Ω, 1 kHz (Max Power)
- 4 × 37 W (typ.) @ 13.7 V, 4 Ω, 1 kHz
- 4 × 24 W (typ.) @ 14.4 V, THD = 10%, 4 Ω
- 4 × 21 W (typ.) @ 13.2 V, THD = 10%, 4 Ω
Supply Voltage Range: 9 V to 18 V
Load Impedance: 4 Ω (typical automotive application)
Total Harmonic Distortion (THD):
- 0.02% (typ.) at 5 W output, 1 kHz
Noise Voltage:
- 0.18 mVrms (typ.)
Built-In Functions:
- Standby control (Pin 4)
- Mute control (Pin 22)
- AUX amplifier input/output
- Fixed gain of 34 dB

Additional Information

Device

IC

Enhance your audio system with the TA8261H 4-Channel BTL Audio Power Amplifier IC from Toshiba. Delivering up to 41W per channel, this high-performance amplifier ensures crystal-clear sound with minimal distortion. Perfect for automotive applications, it offers reliable power and built-in control features for ultimate convenience. Upgrade your audio experience today!
