BRAND: Tektronix

Tektronix Digital Storage Oscilloscope 70MHz 2CH, 1.0 GS/s, 7Inch Colour Display, 20K Point Record Length on all Channels, 8Bit Vertical Resolution, 1 mV/div to 50 mV/div: ± 1 V, Time Base :2ns/div!~100 sec/div in a 1-2-4 seq, 155x325x106 2.2kg

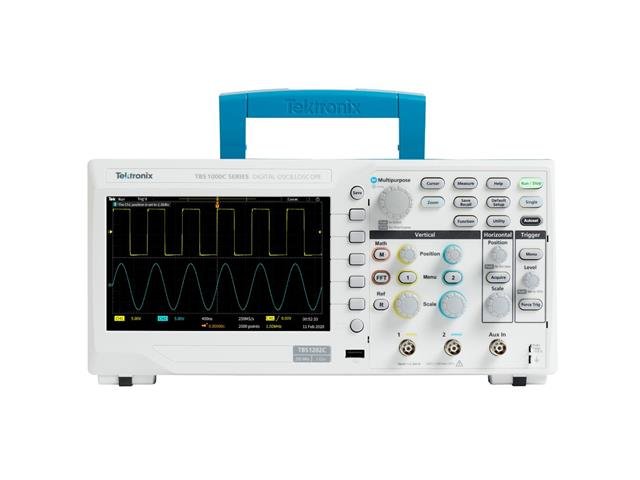

Tektronix Digital Storage Oscilloscope


The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community. The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five- year warranty. The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students. HelpEverywhere® system provides useful tips and hints throughout the user interface, to make the instrument more approachable to a new user.


    • 7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
    • 32 automated measurements
    • Dual window FFT with simultaneous time and frequency domain views
    • Trigger frequency counter
    • Pan and Zoom capability
    • Multi-language user interface with support for 10 languages in the user interface and front panel overlay
    • Small footprint and light weight
    • Fanless design contributes to low noise operation


    • USB 2.0 host port on the front panel for quick and easy data storage.
    • USB 2.0 device port on rear panel to connect to a PC and remotely control the instrument.


  • HelpEverywhere provides helpful on-screen tips for users
  • Built-in oscilloscope handbook provides operating instructions and oscilloscope fundamentals
  • Integrated courseware feature provides lab exercise guidance on the display
  • Autoset, Cursors, and Automated measurements can be disabled to help educators to teach basic concepts to students


  • Bandwidth1 : 70 MHz
  • Channels : 2
  • Sample rate on each channel : 1 GS/s
  • Record length : 20 K points


Additional Information

Device Oscilloscope
Type Digital Storage
