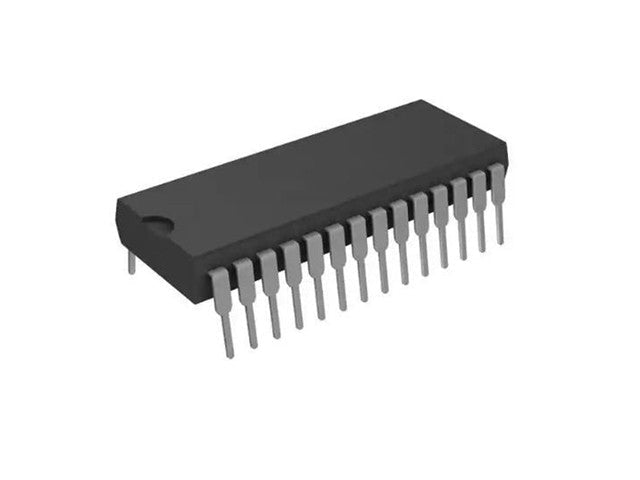

TDA4501

Name: TDA4501 - Communica [Part No: TDA4501]
Brand: Communica
SKU: TDA4501
Price: 63 ZAR
Availability: InStock

SKU: TDA4501

BRAND: Communica

R 72.45_{(inc VAT)}
R 63.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Audio & Video ICs

Category: Video Processing ICs

AMP VIF, VID Detect, Tuner AGC&AFC, SIF

Specifications

Vision IF amplifier with synchronous demodulator
AGC detector for negative modulation
AGC output to tuner
AFC circuit
Video and audio preamplifiers
Sound IF amplifier and demodulator
Selectable sound volume control or horizontal oscillator starting function
Horizontal synchronization circuit with two control loops
Triggered divider system for vertical synchronization
Sawtooth generation with automatic amplitude adjustment for 50 Hz or 60 Hz operation
Transmitter identification circuit with mute output
Sandcastle pulse generator

Downloads

Datasheet - TDA4501

Additional Information

Device

IC

Unlock superior audio and video quality with the TDA4501, an advanced Vision IF amplifier designed for seamless tuner integration. Featuring automatic gain control and flexible sound volume management, this IC ensures optimal performance for both 50 Hz and 60 Hz applications. Elevate your electronic projects with reliable synchronization and enhanced audio clarity today!
