TDA8732

Name: TDA8732 - Communica [Part No: TDA8732]
Brand: Communica
SKU: TDA8732
Price: 17.68 ZAR
Availability: InStock

SKU: TDA8732

BRAND: Communica

R 20.33_{(inc VAT)}
R 17.68_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Audio & Video ICs

Category: Audio Demodulators ICs

Nicam-728 Demodulator (NIDEM) 20Pin

Specifications

Product Type: NICAM-728 Demodulator (NIDEM)
Demodulation Type: DQPSK (Differential Quadrature Phase Shift Keying)
Audio Standard: NICAM-728
Compatible TV Systems:
- PAL B
- PAL G
- PAL I
Supply Voltage:
- 5 V Analog
- 5 V Digital

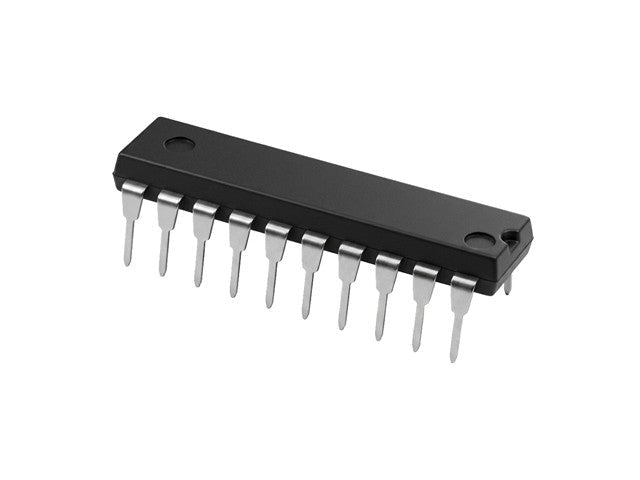

Package Type: 20-pin Plastic DIP (DIL-20)
Data Output: 728 kbit/s Serial Data
Clock Output: 728 kHz
Reference Clock Output: 5.824 MHz (8 × 728 kHz)
QPSK Input Frequency: 5–7 MHz
Carrier Oscillator Frequency:
- 11.7 MHz (PAL B/G)
- 13.104 MHz (PAL I)
Bit-Rate Oscillator Frequency: 11.648 MHz
Control Interface: Compatible with NICAM Decoder Interface

Feature

Integrated DQPSK demodulator
Carrier recovery loop
Bit-rate clock recovery
Differential data decoder
Limiting amplifier for QPSK input
Low external component count
Low-cost implementation
Improved noise performance

Additional Information

Device

IC

Experience superior audio quality with the TDA8732 NICAM-728 Demodulator. Designed for compatibility with PAL TV systems, this 20-pin device delivers enhanced noise performance and efficient data processing, making it an ideal choice for high-fidelity sound in your electronic applications. Upgrade your audio system with this reliable and cost-effective solution today!
