TDGC2-2KVA

SKU: TDGC2-2KVA

BRAND: Suntek

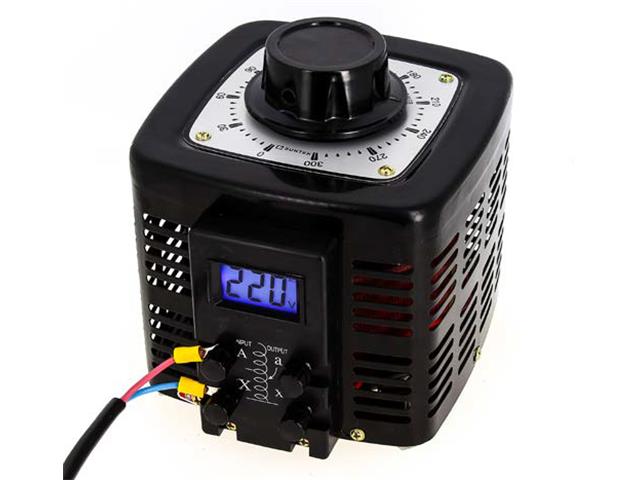

Variac I=220V O=0-250V 8 Enclosed Single Phase (H=235 W=207 x D=208)

8 Enclosed Single Phase Variac

Overview

The TDGC2 regulator have many adavantages: such as no wave form distortion, Small in size, light in weight, high efficiency, easy-to-run, reliable and able to operate for a long time. It can be widely used in industies such as chemical metallurgical, instrumental, Mechanical and electrical light industry, as for scientific experiments, public utility and domestic electrical appliances in order to adjust voltage speed or light to control temperature and power, It is kind of ideal adjustable AC power source.

Specifications

  • Rated power, VA : 2000
  • Maximum current, A : 8
  • Operating input voltage range, V : 0-250
  • Nom. output voltage range, V: 0-300
  • Output voltage error,%: Less than 1%
  • Warranty: 2 years
  • Distortion sine wave: missing
  • Connection option: Terminals (connection kit)
  • Operating range t ° C: -5 - +50
  • Cooling: passive
  • Network Connection Method: terminals
  • Housing: metal
  • Overall dimensions h-v-cm: 19x18x21
  • Weight, kg: 8

Downloads

Additional Information

Device Variac
Type Enclosed | Single Phase
