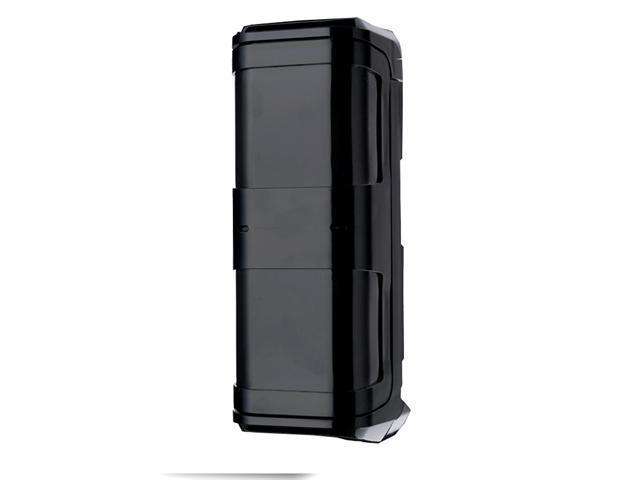

TEXE AFQ-0001

The Premier External TD is a purpose built outdoor sensor for security applications. Utilising two non-overlapping PIR sensors with superior mirrored optics, the Premier External TD is designed to perform in harsh outdoor environments.

• Superior mirror optics
• 12m volumetric range, adjustable to 8, 5 & 2 metres
• No disassembly required for installation
• 90° viewing angle - rotatable through 180°
• Environmentally sealed IP65 enclosure
• Digital temperature compensation for hot climates
• Auxiliary input for wiring multiple detectors
• High white light immunity
• Day/night mode

• Mounting Height : 1.0-1.4m, 1.2m Nominal
• Supply Voltage : 9-16VDC
• Current Consumption : 28mA
• Detection Method : Dual, non-overlapping, digital PIR
• Alarm Output : NC/NO selectable relay. Rated 50V DC, 100mA, 18Ω
• Tamper Detection : Wall and case. Sealed non-mechanical switch.
• Tamper Output : NC relay. Rated 50V DC, 100mA, 18Ω
• Operating Temperature : -35°C to 55°C
• Dimensions : 250mm x 86.5mm x 87mm
• Packed Weight : 550g Approx
