TEXE AFQ-0002

Name: TEXE AFQ-0002 - Communica [Part No: TEXE AFQ-0002]
Brand: Texecom
SKU: TEXE AFQ-0002
Price: 1664.27 ZAR
Availability: OutOfStock

SKU: TEXE AFQ-0002

BRAND: Texecom

Sold Out
R 1,913.91_{(inc VAT)}
R 1,664.27_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: PIR

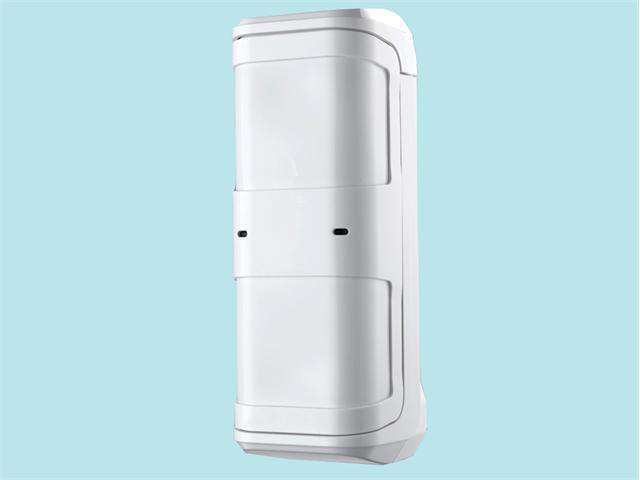

IP65 Outdoor PIR with two non-overlapping sensors, Superior Mirror Optics and Day/Night Mode in White Colour

Overview

The Premier External TD is a purpose built outdoor sensor for security applications. Utilising two non-overlapping PIR sensors with superior mirrored optics, the Premier External TD is designed to perform in harsh outdoor environments.

Features

Superior mirror optics
12m volumetric range, adjustable to 8, 5 & 2 metres
No disassembly required for installation
90° viewing angle - rotatable through 180°
Environmentally sealed IP65 enclosure
Digital temperature compensation for hot climates
Auxiliary input for wiring multiple detectors
High white light immunity
Day/night mode

Specification

Mounting Height : 1.0-1.4m, 1.2m Nominal
Supply Voltage : 9-16VDC
Current Consumption : 28mA
Detection Method : Dual, non-overlapping, digital PIR
Alarm Output : NC/NO selectable relay. Rated 50V DC, 100mA, 18Ω
Tamper Detection : Wall and case. Sealed non-mechanical switch.
Tamper Output : NC relay. Rated 50V DC, 100mA, 18Ω
Operating Temperature : -35°C to 55°C
Dimensions : 250mm x 86.5mm x 87mm
Packed Weight : 550g Approx
