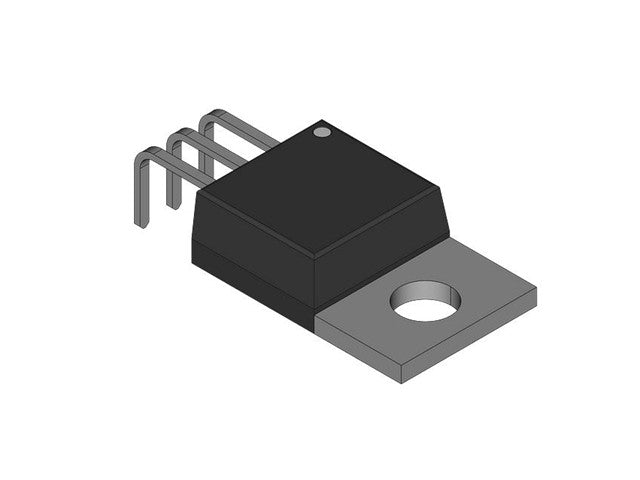

TIP49

Name: TIP49 - Communica [Part No: TIP49]
Brand: Communica
SKU: TIP49
Price: 4.28 ZAR
Availability: InStock

SKU: TIP49

BRAND: Communica

R 4.92_{(inc VAT)}
R 4.28_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Bipolar Transistor

N 200V 350V 1A 30/150 TOP66

Bipolar (BJT) NPN Transistor

Specifications

Transistor Type	NPN
Collector Current (IC) (Max)	1 A
Collector-Emitter Breakdown Voltage (VCEO) (Max)	350 V
DC Current Gain (hFE) (Min) @ IC, VCE	30 @ 300 mA, 10 V
Collector Cutoff Current (Max)	1 mA
VCE Saturation (Max) @ IB, IC	1 V @ 200 mA, 1 A
Transition Frequency (fT)	10 MHz
Power Dissipation (Max)	40 W
Operating Temperature	-65°C to +150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220-3

Additional Information

CatGroup	Transistor
Device	Transistor

Discover the TIP49 NPN transistor, designed for optimal performance with a collector current of 1A and a breakdown voltage of 350V. Ideal for various applications, it ensures reliable operation even in extreme temperatures from -65°C to +150°C. Upgrade your projects with this robust, efficient transistor for enhanced power management and reliability.
