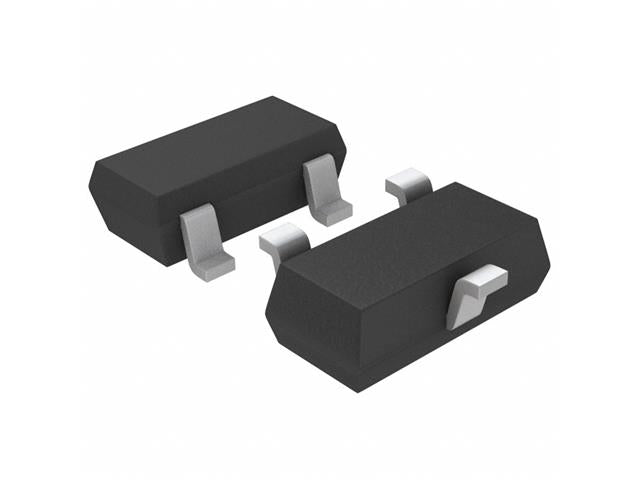

TN2124K1

Name: TN2124K1 - Communica [Part No: TN2124K1]
Brand: Microchip
SKU: TN2124K1
Price: 7 ZAR
Availability: OutOfStock

SKU: TN2124K1

BRAND: Microchip

Sold Out
R 8.05_{(inc VAT)}
R 7.00_{(ex VAT)}

N MOSFET 240V 10 OHM SOT-23 (NIC)

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	240 V
Current - Continuous Drain (Id) @ 25°C	134mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	3V, 4.5V
Rds On (Max) @ Id, Vgs	15Ohm @ 120mA, 4.5V
Vgs(th) (Max) @ Id	2V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
Power Dissipation (Max)	360mW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-236AB (SOT23)

CatGroup	Transistor
Device	Transistor
