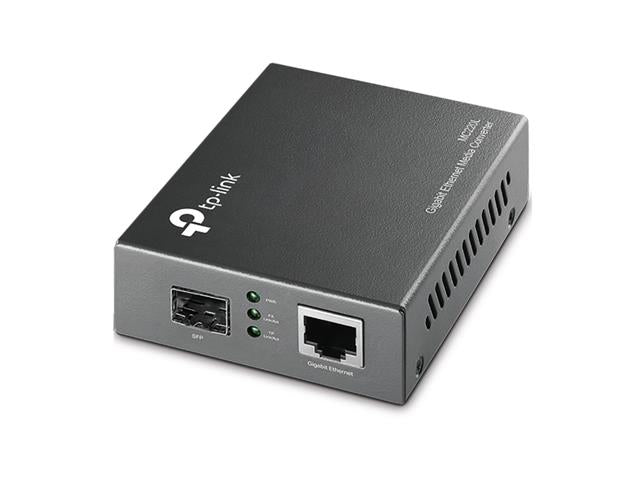

TP-LINK Gigabit Ethernet Media Converter 10/100/1000Mbps Auto-Negotiation RJ45 Ports Supporting Auto-MDI/MDIX

Gigabit Ethernet Media Converter


The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.


  • 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • FX port supports hot-swappable
  • Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

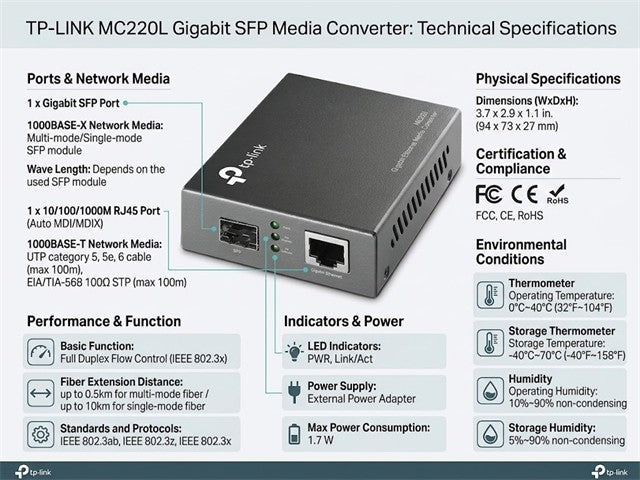

  • Standards and Protocols : IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
  • Basic Function : Full Duplex Flow Control (IEEE 802.3x), Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber
  • Ports : 1 x Gigabit SFP port, 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
  • Wave Length : Depends on the used SFP module
  • Network Media 1000BASE-X : Multi-mode/Single-mode SFP module
  • Network Media 1000BASE-T : UTP category 5, 5e, 6 cable (maxium 100m), EIA/TIA-568 100Ω STP (maximum 100m)
  • LED Indicators : PWR, Link/Act
  • Dimensions (WxDxH) : 3.7 x 2.9 x 1.1 in. (94 x 73 x 27 mm)
  • Power Supply : External Power Adapter
  • Max Power Consumption : 1.7 W
  • Safety & Emission : FCC, CE, RoHS
  • Environment Operating Temperature : 0°C~40°C (32°F~104°F)
  • Storage Temperature : -40°C~70°C (-40°F~158°F)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
