TP-LINK VIGI Full-Color Dome Network Camera 5MP 4mm Lens, 1/2.7” CMOS, 30m IR, Max RES:2880x1620, CBR/VBR, H2.65+, BLC/3D DNR/HLC/Smart IR, WDR 120dB, 1xRJ45 10/100M, Built-in microphone, PSU:12VDC, Po(802.3af/at), UP TO 256GB, ONVIF, IP67

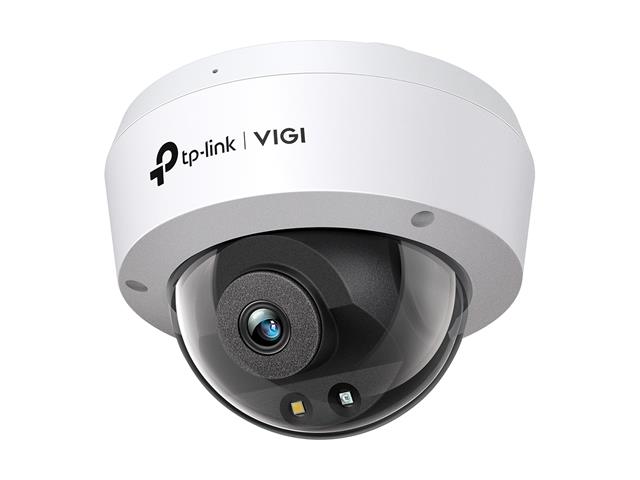

VIGI Full-Color Dome Network Camera


  • 5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
  • People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency§.
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
  • IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video EnhancementVIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB)



  • Product Model: VIGI C250
  • Image Sensor: 1/2.7” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Slow Shutter: Yes
  • Min. Illumination: 0.005 Lux; 0 Lux with IR/white light
  • Day & Night: IR Cut Filter
  • Day/Night Switch: Day/Night/Auto/Schedule-Switch


  • Type:Fixed Focal Lens
  • Focal Length: 4 mm
  • Aperture: 4 mm: F1.6
  • FOV: 4mm:  Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
  • Lens Mount: M12*P 0.5

DORI Distance

  • Lens:4 mm
  • Detect:80 m (262 ft)
  • Observe:33 m(109 ft)
  • Recognize:16 m(52 ft)
  • Identify:8 m (26 ft)

Angle Adjustment (Manual)

  • Range: Pan: 0° to 360°, Tilt: 0° to 85°


  • IR LED:
  • Quantity: 1
  • Range: 30m
  • Wavelength: 850nm

White LED:

  • Quantity: 1
  • Range: 30m

Illuminator On/Off Control : Auto/Scheduled/Always on/Always off


  • Max. Resolution:2880 X 1620
  • Main Stream-

Frame Rate50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

  • Sub-Stream-

Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

  • Bit Rate Control:CBR, VBR
  • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
  • H.264 Type: Main Profile/High Profile
  • H.264+: Main Stream Supported
  • H.265 Type: Main Profile
  • H.265+: Main Stream Supported
  • Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps


  • Image Settings:Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
  • Image Enhancement BLC/3D DNR/HLC/SmartIR
  • Wide Dynamic Range 120 dB
  • SNR ≥ 52 dB
  • Image Parameters Switch Yes
  • Privacy Mask Up to 4 Masks
  • ROI 1 Region
  • OSD Setting Yes


  • Audio Communication N/A
  • Audio Input Yes
  • Audio Output N/A
  • Audio Compression Yes
  • Audio Sampling Rate 8KHz
  • Environment Noise Filtering Yes
  • Audio Bit Rate 64 Kbps(G.711 alaw)


  • Network Storage NAS (NFS, SMB/ CIFS)
  • API Open Network Video Interface (Profile S)
  • Web Browser- Google Chrome® 57 and above
                         Firefox® 52 and above
                         Safari® 11 and above
                         Microsoft® Edge 91 and above
  • Security:  Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
  • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
  • Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
  • Cloud: Yes
  • ONVIF: Yes


  • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  • On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
  • Built-in Speaker: N/A
  • Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
  • Audio: N/A
  • Alarm; N/A
  • Reset Button :Yes
  • Power: DC Power Port

Alarm and Event Management

  • Smart Event- Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing  Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object            Removal Detection , Loitering Detection
  • Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
  • Alarm Linkage: Memory Card Video Recording, Message Push,, White Light Flashing
  • Linkage Method: N/A
  • Output Notification: Message Push

Deep Learning Function

  • Multi-Target-Type Detection Supports Simultaneous Detection and Capture of Human Body and Vehicle
  • Face Capture N/A
  • Face Comparison N/A


  • Operating Temperature -30–60 °C
  • Storage Temperature -40–60 °C
  • Operating Humidity 95% or Less (Non-Condensing)
  • Storage Humidity 95% or Less (Non-Condensing)
  • Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)

Power Consumption

  • Maximum 7 W
  • Typical (Day Mode) 1.5 W
  • Typical (Night Mode with IR LED) 2.5 W
  • Typical (Night Mode with White LED) 2.8 W
  • Material: Plastic
  • Protection: IP67, IK10
  • Product Dimensions (L x W x H): Φ115 x 85.7 mm
  • Package Contents - VIGI Network Camera
                                Quick Start Guide
                                Waterproof Cable Attachments
                                Mounting Accessories
  • Net Weight:0.28 Kg
  • Gross Weight;0.47 Kg
  • Certifications :CE, NTRA, VCCI, KC, BSMI, FCC, IC


Additional Information

Device Camera
Type VIGI | Full-Color | Dome | Network
