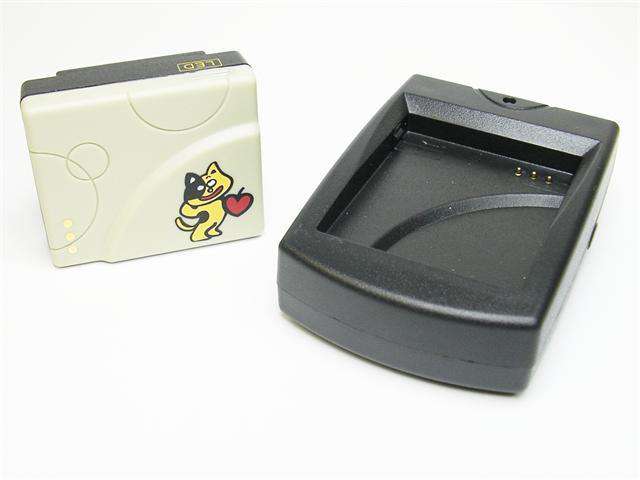

TRACKER T013 WRIST BAND

SKU: TRACKER T013 WRIST BAND

BRAND: Communica


GPS/GPRS/GSM Mini Wrist type Real Time Tracker ideal for Personal/Kids/Pets 49x40x17mm and 35g

Overview

GPS module inside of the tracker will search GPS signal, and send it by GSM module through SMS or GPRS. The user can get Google map link in the Mobile Phone by SMS and click it directly to check the position. The user can also log in Tracking Software to check the position or track by tracking software application.

Features

LED Indicators
  • In fortify mode, three indicators are off; In non-fortify mode, three indicators are on.
Turn on the tracker
  • The tracker will be on automatically when the battery is in. Led flashes slowly means the tracker is working on
Change password
  • There is a default password and new password must be 6 digits.
  • Remember the new password otherwise you must update the software.
Set up Authorized Number
  • 5 Authorized numbers can be set up in total. The other mobile numbers cannot track the tracker if the authorized numbers has be set up. Any number can track the tracker when without authorized number.
  • Add country code before the mobile number when caller ID display
Track by Time Interval
  • You can track by fixed time when you set it, but the smallest interval must be 5 seconds.
GSM ID tracking
  • GSM ID tracking can be used when the tracker is in GPS blind area.
  • GSM id is not so aocurate because every communication station`s density is different.
Movement Alert
  • Press the button(or set by command) to set up fortifying mode. The tracker will send “mo+google map link” to authorized number if it goes out of the area within 500m. It is “mo” which alert code to the servers. Press the same button to cancel fortifying.
Overspeed Alert
  • The tracker will send overspeed alert by SMS or GPRS when this function is set and it is over speed.
Low Battery Alert
  • The tracker will send “lo+google map link” to authorized number when the voltage of battery is less than 3.7V. It is “Lo” which alert code to the servers.
Initialization
  • The tracker will be initialized after setting up this command, but the password will not be change.
History-Trace Checking
  • The history trace within 30 days can be checked on tracking software if the auto-tracking is be set up in advance.
Geo-Fence Alarm
  • The tracker will send geo-fence alarm when it goes out of the area of set in advance.

Specification

  • Small Size and Light Weight Personal/kids/pets Tracker
  • Size : 49mmx40mmx17mm
  • Weight : 35g
  • Battery : 3.7V 460mAh
  • Standby time : 72h
  • Power consumption for working current ≥200Ma
  • Power consumption for free current ≥6Ma
  • In Power : DC5V
  • GPS chip : SIRF4chip
  • GPS sensitivity : -159dBM
  • GPS accuracy : 5m
  • Network : GSM/GPRS
  • Frequency : 850/900/1800/1900Mhz
  • Storing temp. : -40°C ~ +85°C
  • Working temp. : -20°C ~ +75°C
  • Humidity : 5%~95% non-condensing
