TTC05154KSY

Name: TTC05154KSY - Communica [Part No: TTC05154KSY]
Brand: Communica
SKU: TTC05154KSY
Price: 5.40 ZAR
Availability: InStock

SKU: TTC05154KSY

BRAND: Communica

R 6.21_{(inc VAT)}
R 5.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

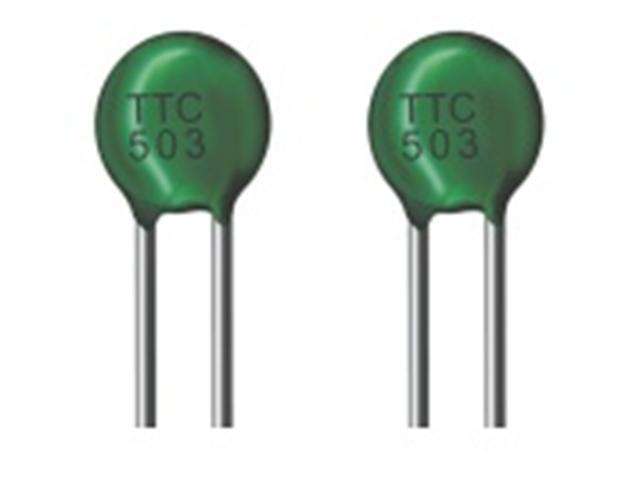

ø5mm Radial Lead Disc NTC Thermistor for Temperature Sensing/Compensation with R25°C= 150kΩ, ±10% Tolerance

Overview

Features

RoHS compliant
Halogen-Free (HF) series are available
Body size: ø5mm
Radial lead resin coated
Operating temperature range: -30~+125°C
Wide resistance range
Cost effective
Agency recognition: UL / cUL / CSA / TUV / CQC

Specification

Size	ø5mm
Termination	Radial
Tolerance	±10%
Tolerance Code	K
Zero Power Resistance @ 25 degC	150kΩ

Downloads

Datasheet Download

Discover the TTC05154KSY Radial Lead Disc NTC Thermistor, perfect for accurate temperature sensing and compensation. With a compact ø5mm size and a resistance of 150kΩ at 25°C, this RoHS-compliant thermistor operates from -30 to +125°C, ensuring reliability and performance in various applications. Upgrade your projects with this cost-effective, high-quality component recognized by major agencies.
