TTC05223KSY

Name: TTC05223KSY - Communica [Part No: TTC05223KSY]
Brand: Communica
SKU: TTC05223KSY
Price: 5.40 ZAR
Availability: InStock

SKU: TTC05223KSY

BRAND: Communica

R 6.21_{(inc VAT)}
R 5.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

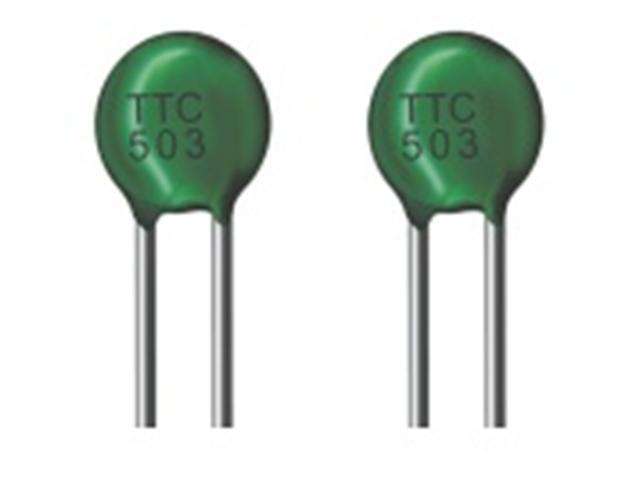

ø5mm Radial Lead Disc NTC Thermistor for Temperature Sensing/Compensation with R25°C= 22kΩ, ±10% Tolerance

Overview

Features

RoHS compliant
Halogen-Free (HF) series are available

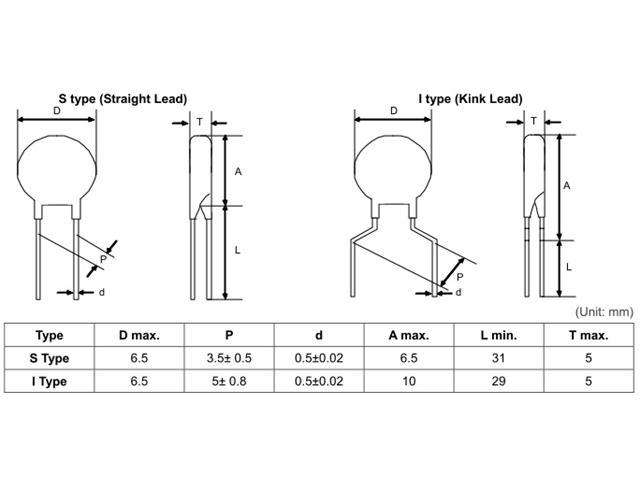

Body size: ø5mm
Radial lead resin coated
Operating temperature range: -30~+125°C
Wide resistance range
Cost effective
Agency recognition: UL / cUL / CSA / TUV / CQC

Specification

Size	ø5mm
Termination	Radial
Tolerance	±10%
Tolerance Code	K
Zero Power Resistance @ 25 degC	22kΩ

Downloads

Datasheet Download

Discover the TTC05223KSY, a high-performance ø5mm Radial Lead Disc NTC Thermistor designed for precise temperature sensing and compensation. With a resistance of 22kΩ at 25°C and a wide operating range from -30 to +125°C, this cost-effective solution ensures reliability and accuracy in your applications. RoHS compliant and halogen-free, it's the ideal choice for environmentally conscious projects.
