TTC05473KSY

Name: TTC05473KSY - Communica [Part No: TTC05473KSY]
Brand: Communica
SKU: TTC05473KSY
Price: 5.40 ZAR
Availability: InStock

SKU: TTC05473KSY

BRAND: Communica

R 6.21_{(inc VAT)}
R 5.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

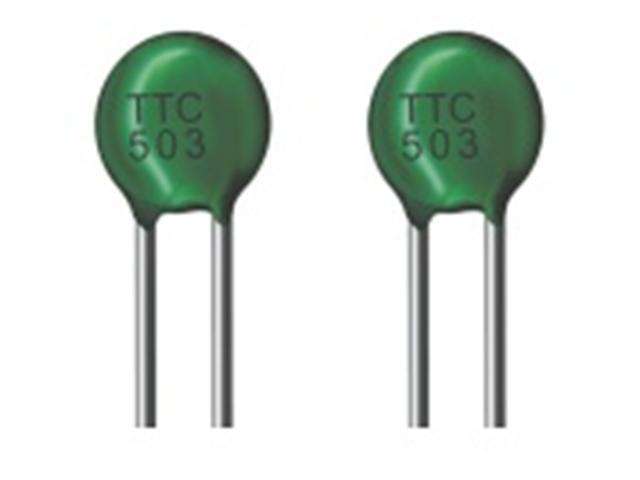

ø5mm Radial Lead Disc NTC Thermistor for Temperature Sensing/Compensation with R25°C= 47kΩ, ±10% Tolerance

Overview

Features

RoHS compliant
Halogen-Free (HF) series are available
Body size: ø5mm
Radial lead resin coated
Operating temperature range: -30~+125°C
Wide resistance range
Cost effective
Agency recognition: UL / cUL / CSA / TUV / CQC

Specification

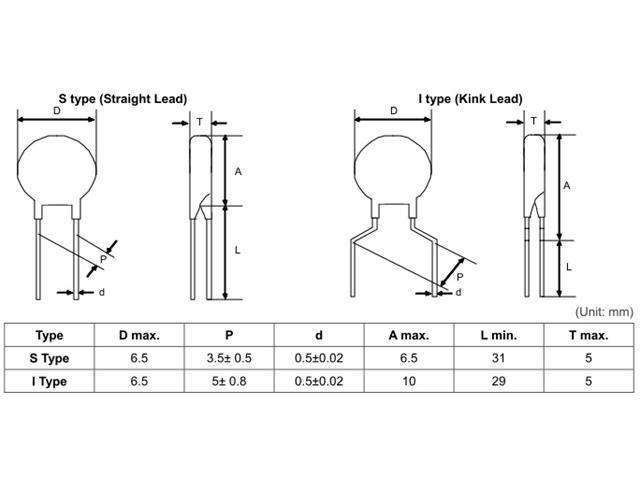

Size	ø5mm
Termination	Radial
Tolerance	±10%
Tolerance Code	K
Zero Power Resistance @ 25 degC	47kΩ

Downloads

Datasheet Download

Discover the TTC05473KSY 5mm Radial Lead Disc NTC Thermistor, designed for precise temperature sensing and compensation. With a resistance of 47kΩ and a wide operating range of -30 to +125°C, this cost-effective solution ensures reliable performance in various applications. Enjoy peace of mind with RoHS compliance and recognized safety standards. Upgrade your temperature management today!
