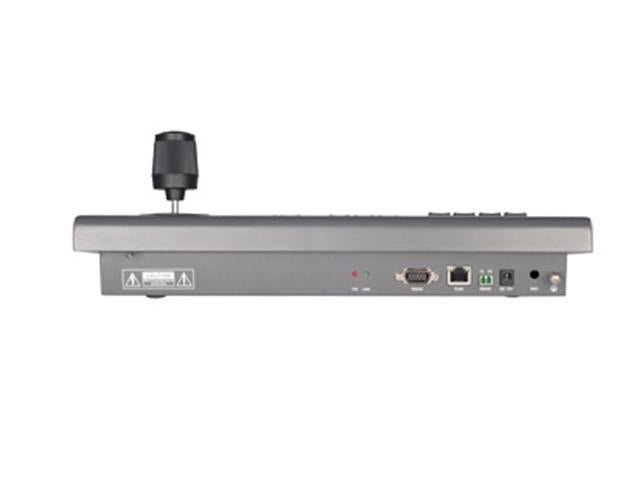

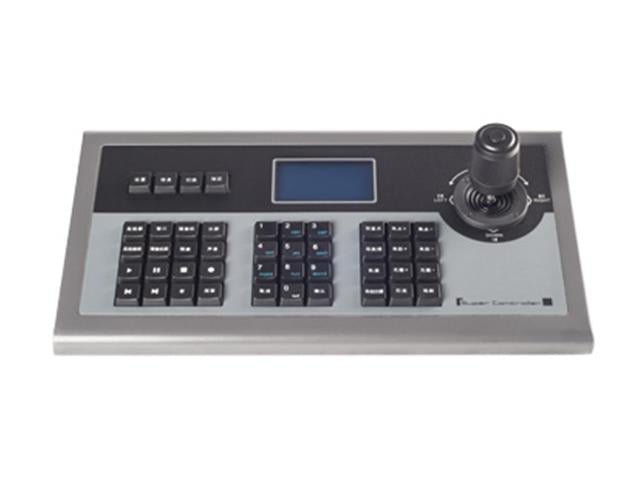

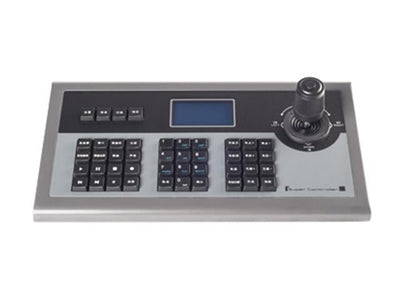

TVT TD-K11-W

SKU: TVT TD-K11-W

BRAND: TVT


PTZ Keyboard Controller Intergration with NVMS-5000, LCD Display, RJ45 10/100m Ethernet Port, RS485/RS232, 12VDC, 8W, 420x260x170mm, 28kg

PTZ Keyboard Controller Intergration

Overview

TD-K11-W is a newly developed network controlling keyboard by TVT, working together with NVMS-5000 platform. It can be widely used in Finance, Buildings, Factory, Police, Telecommunication, School, Water conservancy and other fields.

Specifications

Local Parameters
Display LCD display, multi-language menu supported
Joystick Four-dimensional rocker
Keys Four functional areas
Network Parameters
Network Interface One RJ45 10/100M Adaptive ethernet port
Control Mode PTZ mode and platform mode
Network Management The network keyboard can be configured and the software can be upgraded by WEB client
Serial Port Parameters
Serial Port Two standard serial ports: RS485 × 1, RS232 × 1
Bit Rate 1200bps、2400bps、4800bps、9600bps、19200bps
Others
Power Supply DC12V
Power Consumption ≤8W
Working Temperature -10℃~+60℃
Working Humidity 10%~90%
Dimension 420( L ) × 260( W ) × 170 ( H ) mm
Weight 2.8kg

Downloads

Additional Information

Device Keyboard Controller
Type PTZ | Intergration
