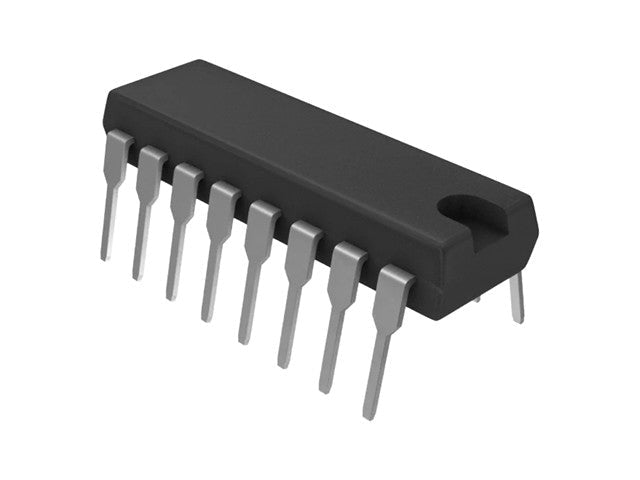

UC3825N

SKU: UC3825N

BRAND: Communica

R 87.98_{(inc VAT)}
R 76.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Power Management ICs

Category: Switching Power Supply Controller

HI-Speed CUR/VOLT Mode PWM CONT 16P 25/T

Specifications

Output Type: Transistor Driver
Function: Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration: Positive
Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs: 2
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 8.4V ~ 30V
Frequency – Switching: 340kHz ~ 460kHz
Duty Cycle (Max): 85%
Synchronous Rectifier: No
Clock Sync: No
Control Features: Current Limit, Enable, Frequency Control, Ramp, Soft Start
Operating Temperature: 0°C ~ 70°C (TA)
Mounting Type: Through Hole
Package / Case: 16-DIP (0.300", 7.62mm)
Supplier Device Package: 16-PDIP

Downloads

Datasheet
