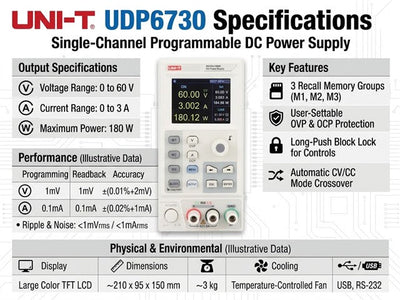

UNI-T UDP6730

Name: UNI-T UDP6730 - Communica [Part No: UNI-T UDP6730]
Brand: Uni-T
SKU: UNI-T UDP6730
Price: 13042.61 ZAR
Availability: OutOfStock

SKU: UNI-T UDP6730

BRAND: Uni-T

Sold Out
R 14,999.00_{(inc VAT)}
R 13,042.61_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Programmable DC Power Supply

Programmable DC Power Supply 1CH 360W Resolution:10mV/1mA, O/P Voltage & Current: 0~40V / 0~30A, Display: 2.8Inch 4 Digit Display, RS-232, 255x87x174mm, 2.5kg

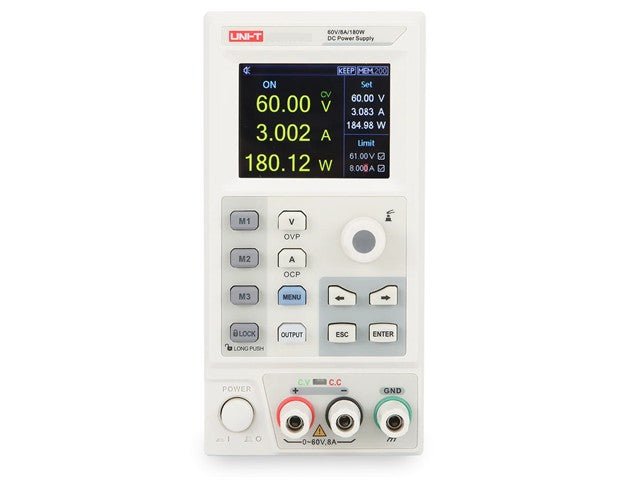

Programmable DC Power Supply

Feature

Fully digital control
Full scale high resolution:10 mV/1mA
Low ripple and noise
Software correction function
Minimum overall dimension
TFT LCD display

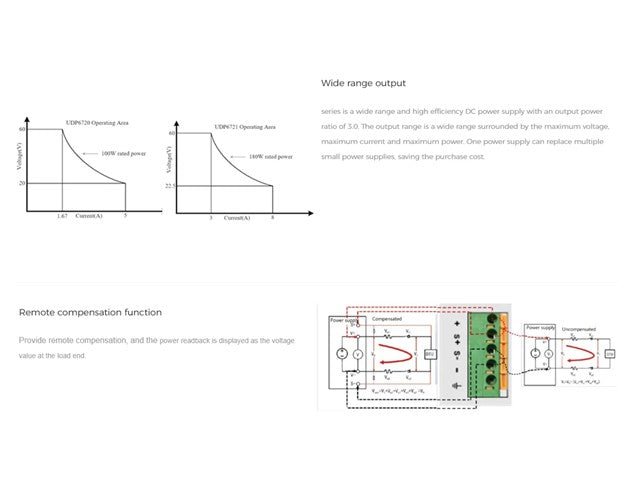

Remote compensation

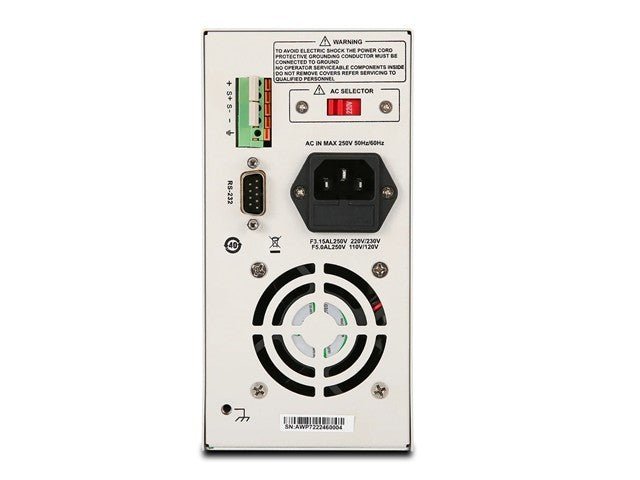

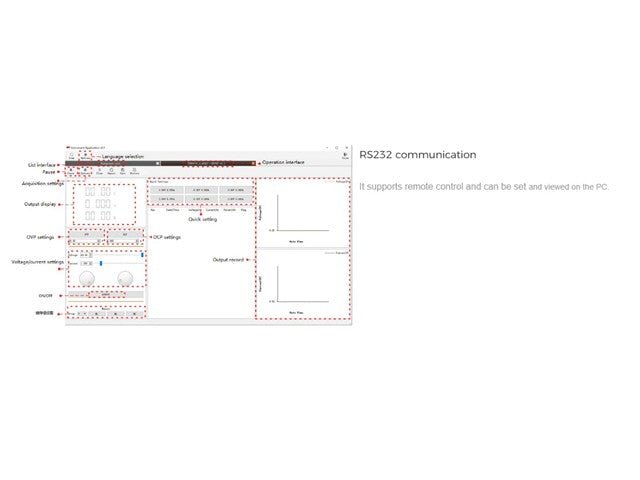

Support RS232 communication
Fan intelligent regulation
Constant voltage and constant current output
High reliability: overvoltage / overcurrent / overtemperature protection function

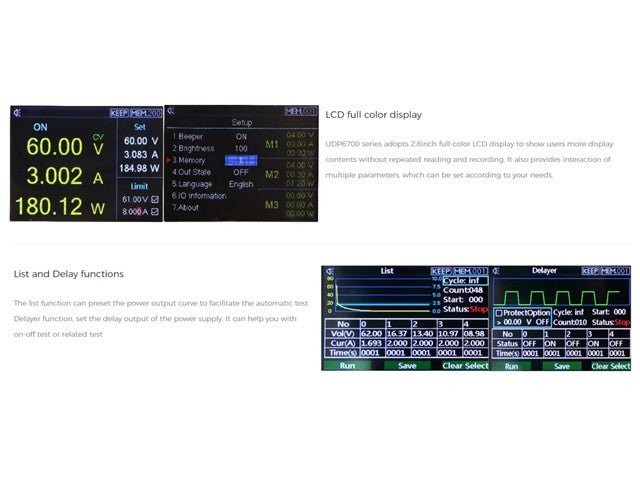

List & delayer function
The output is controlled by a switch
High quality and high cost performance
Multiple groups of output voltage / current can be preset: 3 × 200 groups

Specifications

Model Number	UDP6730
Channels	1Ch
Output Voltage	0~40V
Output Current	0~30A
Total Power	360W
Max V Resolution	10mV
Max A Resolution	1mA
Connectivity	RS-232
Setting Accuracy	<0.1%+10mV <0.3%+30mA
Programmable	true
Warranty	3 years
Shipping Dimensions (W×H×D)	87×174×255(mm)
Shipping Weight	2.5Kg
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Power cord

Downloads

Datasheet - UNI-T UDP6730

Additional Information

Device	Power Supply
Type	Programmable \| DC

Experience precision power with the UNI-T UDP6730 Programmable DC Power Supply, delivering 360W of reliable output. With a resolution of 10mV/1mA and advanced features like remote compensation and intelligent fan regulation, it ensures optimal performance and safety. Perfect for your electronic projects, this compact power supply offers unmatched versatility and high-quality reliability.
