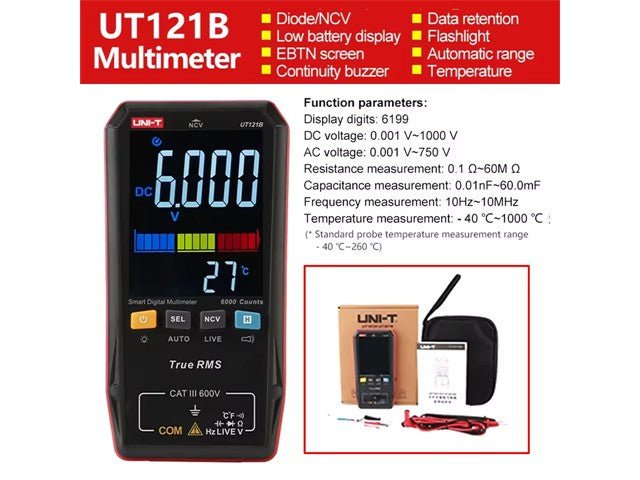

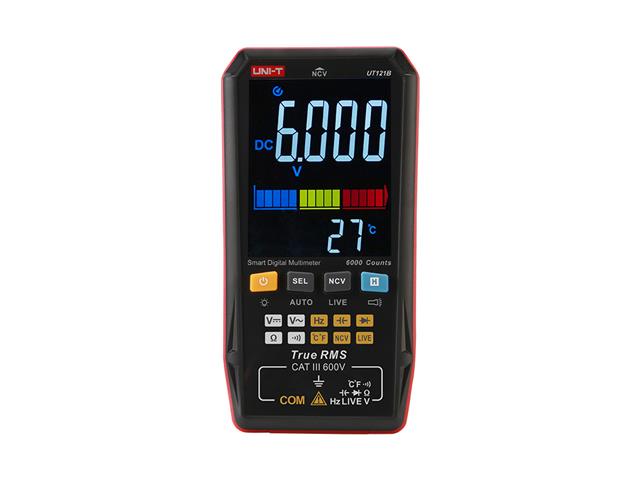

UNI-T UT121B

SKU: UNI-T UT121B

BRAND: Uni-T


Smart Digital Multimter 750VAC/1000VDC, True RMS,AC Voltage FREQ:10Hz~1kHz, Resistance/Capacitance/FREQ/Temp, Display Count:6099, Dual Display, Auto Range, NCV, Live Detection, Diode Test, Continuity Buzzer, LCD High Vltge ALT, Data Hold, Auto PWR OFF

Smart Digital Multimter 750VAC/1000VDC

Specifications

Smart Digital Multimeters


Specifications Range UT121B
AC voltage (V) 6.000V/60.00V/600.0V
6.000V/60.00V/600.0V/750.0V ±(1.5%+3)
AC voltage frequency (Hz) 10Hz-1kHz ±(0.5%+2)
DC voltage (V) 6.000V/60.00V/600.0V
6.000V/60.00V/600.0V/1000.0V ±(1.2%+3)
Resistance (Ω) 6000Ω/60.00KΩ/600.0KΩ/6.000MΩ/10.00MΩ
600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ ±(2%+5)
600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ
Capacitance (F) 60.00nF/600.0nF~600.0μF/6000uF~60.0mF ±(10%+5)
99.99nF/999.9nF~9.999μF/9.999mF~99.99mF
Frequency (Hz) 10.00Hz-10.00MHz ±(0.1%+3)
Temperature(℃/℉) –40℃~1000℃/–40°F~1832°F ±3℃/±6℉
Features
Display count   6099
Dual display
Auto range
NCV detection
LIVE detection
Diode test
Continuity buzzer
 LCD high voltage alert
Flashlight
Low battery indication
Auto power off
Data hold
Category ratings   CATⅢ 600V

Additional Information

Device Multimter
Type Smart Digital | 750VAC/1000VDC
