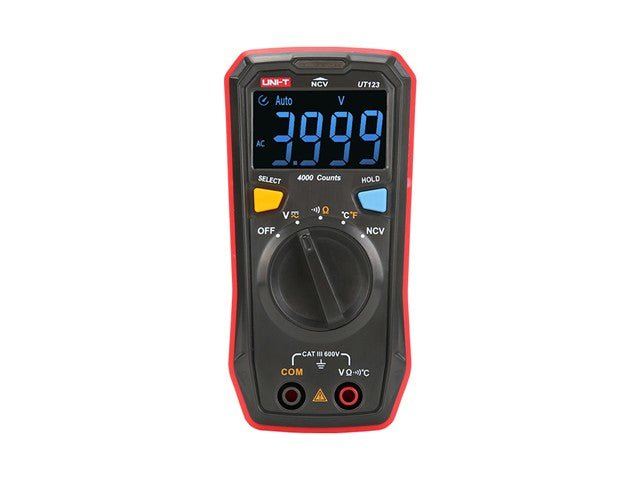

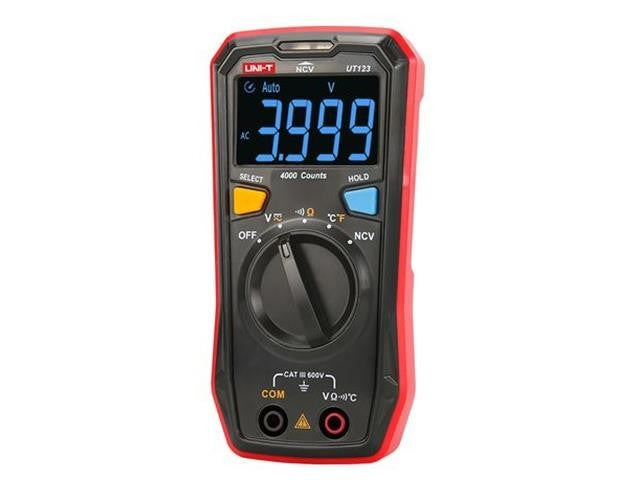

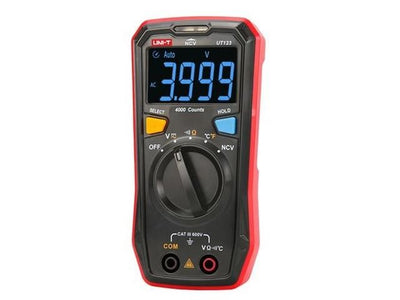

UNI-T UT123

SKU: UNI-T UT123

BRAND: Uni-T


Digital Multimeter 600V AC/DC Auto Range, NCV, Data Hold, LED/Puzzer, Display Count:4000, Temp:–40℃~ 300℃, RES:20MΩ, Auto Power Off, Continuity Test, CAT III 600V

Digital Multimeter 600V AC/DC

Overview

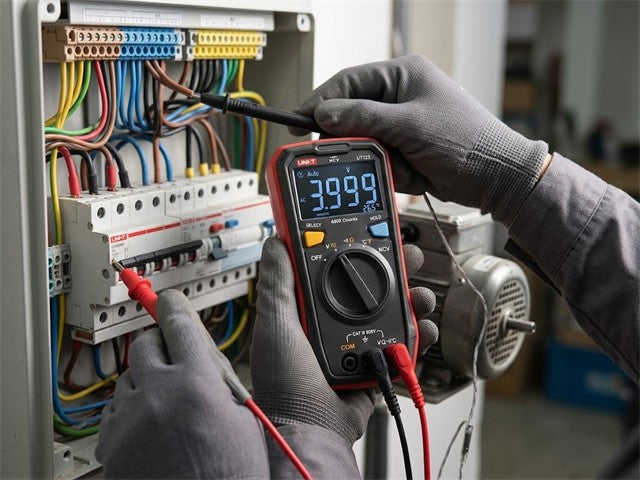

The UT123 is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.

Specifications

Specifications Range UT123/UT123T
DC Voltage 4V/40V/400V/600V ±(0.5%+2)
AC Voltage 4V/40V/400V/600V ±(1.0%+3)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ ±(0.8%+2)
Temperatue –40℃~ 300℃/–40℉~ 572℉ ±4℃
Features
Display Count   4000
Autol Range
NCV
Continuity Test
Acousto-optic indication(NCV/continuity/battery power)
Low Battery Indication ≤2.7V
Data Hold
Auto  Power Off 15Min
Operation Temperature   0℃~40℃
Safety   CAT III 600V
General Characteristics
Power 1.5V battery (R03) x 2
Display 44mm × 26mm
Product color Red and grey
Product net weight 130g
Product size 130mm x 65m x 28mm
Standard accessories Batteries,  Thermocouple
Standard individual packing Gift Box, Manual
Standard quantity per carton 60pcs
Standard carton measurement 480mm x 340mm x 325mm
Standard carton gross weight 15.5kg

Downloads

Additional Information

Device Multimeter
Type Digital | 600V AC/DC
