UNI-T UT136B+

Name: UNI-T UT136B+ - Communica [Part No: UNI-T UT136B+]
Brand: Uni-T
SKU: UNI-T UT136B+
Price: 852.17 ZAR
Availability: OutOfStock

SKU: UNI-T UT136B+

BRAND: Uni-T

Sold Out
R 980.00_{(inc VAT)}
R 852.17_{(ex VAT)}

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Digital Multimeter 1000V AC/DC 10A, RES/CAP/FREQ, hFE Transistor Test, Diode+Continuity Buzzer, Auto Power OFF, Data Hold, Max Display 4000, CATⅡ 1000V, CATⅢ 600V, Drop Test 2M, Weight 330g

Digital Multimeter 1000V AC/DC 10A

Overview

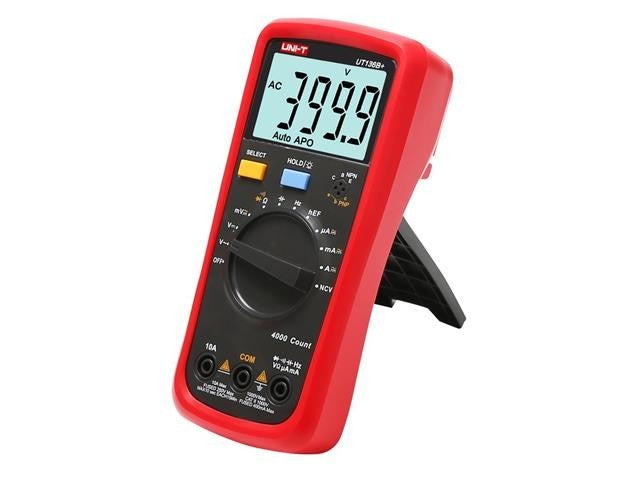

UT136B+ digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.

Features

Measures up to 1000V and 10A AC/DC voltage and current
Equipped with 3mm protective sleeve; 2 meters drop proof
Large LCD display; Overload alarm
Quick sampling rate, up to 4 times/s
Quick capacitor measurement (measures 1mF in 4 seconds)
Low power consumption and auto power saving function; long battery service life (>500hrs)

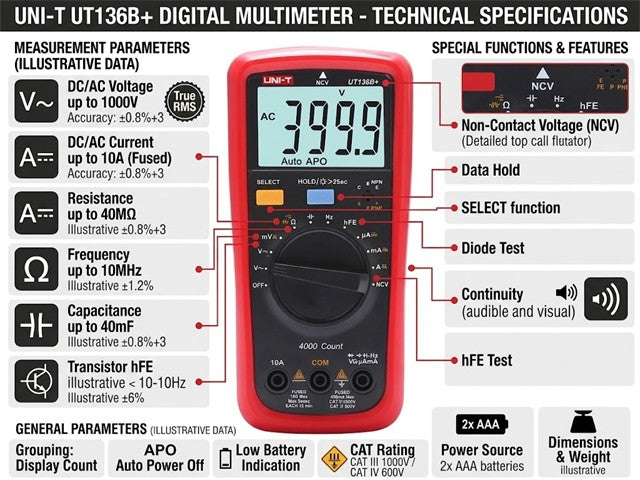

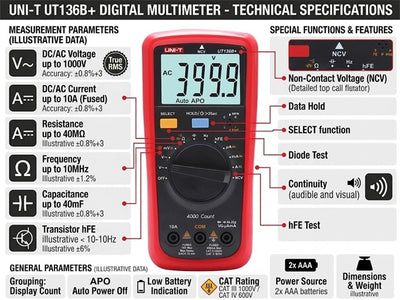

Specifications

Range	UT136B+
DC voltage (V)	1000V	±(0.7%+3)
AC voltage (V)	1000V	±(1%+3)
DC current (A)	10A	±(1%+3)
AC current (A)	10A	±(1.2%+5)
Resistance (Ω)	40MΩ	±(0.8%+2)
Capacitance (F)	40mF	±(3%+5)
Frequency (Hz)	400Hz~40mHz	±(0.1%+4)
Temperature (°C)	-40~1000℃	±(1%+4)
Temperature (℉)	-40~1832℉	±(1.5%+5)
Features
Display count		4000
hFE	Transistor measurement	Yes
NCV	Non-contact voltage detection
Diode/transistor		Yes
Continuity buzzer		Yes
Data hold/Auto power off		Yes
Low battery/Indication		Yes
LCD backlight		Yes
Safety rating	CAT Ⅱ 1000V, CAT Ⅲ 600V	Yes
Drop test	2m	Yes
General Characteristics
Power	1.5V battery (R6) x 2
Display	56.5mm x 36mm
Product color	Red and grey
Product net weight	330g
Product size	175mm x 83mm x 53mm
Standard accessories	Batteries, test leads, temperature probe (UT136C+)
Standard individual packing	Gift Box, English manual
Standard quantity per carton	30pcs
Standard carton measurement	390mm x 335mm x 340mm
Standard carton gross weight	12.75kg

Downloads

Additional Information

Device	Multimeter
Type	Digital
