Digital Multimeter 600V AC/DC 10A AC/DC, Resistor :60m, Temperature-400~1000C, Capacitance:99.99mF, Frequency :10Hz-10MHz, Display Count 6000, Auto Range,True RMS, Max/Min, Continuity Buzzer, Diode, Data Hold,l Ow Battery Indication, Auto Power Off, NCV,
Digital Multimeter 600V 10A
Overview

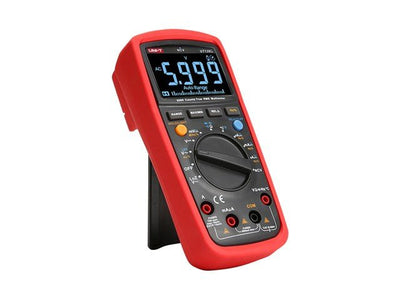

UT139C is a CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
Features
- MAX/MIN/REL modes
- Data hold, LED backlight, auto power off
- Full range protection (600V)
- True RMS
- NCV
- Auto/manual ranges selectable
Specifications
| Specifications |
Range |
UT139C |
| DC voltage (V) |
600V |
±(0.5%+2) |
| AC voltage (V) |
600V |
±(0.8%+3) |
| DC current (A) |
10A |
±(0.7%+2) |
| AC current (A) |
10A |
±(1%+3) |
| Resistance (Ω) |
20MΩ |
|
| 40MΩ |
|
| 60MΩ |
±(0.8%+2) |
| Capacitance (F) |
99.99mF |
±(4%+5) |
| Frequency (Hz) |
10Hz~10MHz |
±(0.1%+4) |
| Temperature (°C) |
-40°C~1000°C |
±(1%+3) |
| Temperature (°F) |
-40°F~1832°F |
±(1.5%+5) |
| Features |
| Display count |
|
6000 |
Auto range/Manual range
/True RMS |
|
Yes |
| Bandwidth (Hz) |
|
45Hz~1kHz |
| NCV/Continuity buzzer |
|
Yes |
| Duty cycle |
0.1%~99.9% |
Yes |
| Diode |
|
Around 3V |
| LPF/LoZ (ACV) |
|
|
| Analog bar |
|
|
| General Characteristics |
| Power |
1.5V battery (R6) x 2 |
| Display |
58mm x 36mm |
| Product color |
Red and grey |
| Product net weight |
UT139A/B/C: 354g; UT139S: 345g |
| Product size |
170mm x 80mm x 48mm |
| Standard accessories |
UT139A/B: Batteries, test leads;
UT139C/S: Batteries, test leads, temperature probe |
| Standard individual packing |
Gift box, English manual |
| Standard quantity per carton |
20pcs |
| Standard carton measurement |
450mm x 330mm x 340mm |
| Standard carton gross weight |
12.2kg |
| Optional accessory |
UT139C: Current sensor AC/DC 40A |
Additional Information
| Device |
Multimeter |
| Type |
Digital | 600V | 10A |
Discover the UNI-T UT139C Digital Multimeter, your essential tool for precise electrical measurements up to 600V and 10A. With features like True RMS, NCV, and auto-ranging, this multimeter ensures accuracy and ease of use for electricians. Its robust design and high-resolution display make it perfect for both bright and dark environments, delivering reliable performance every time. Elevate your electrical testing with the UNI-T UT139C today!
