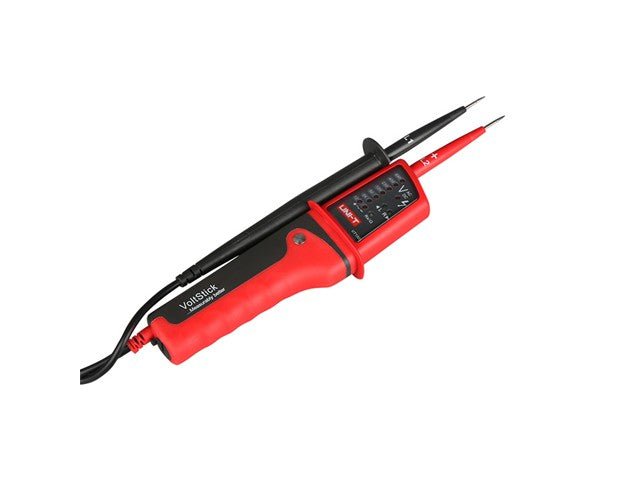

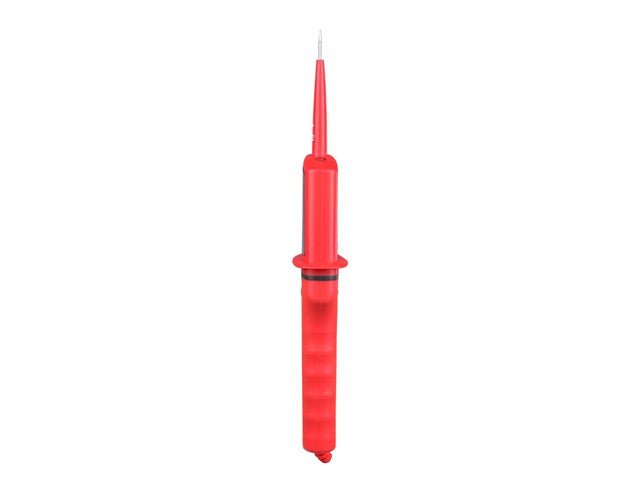

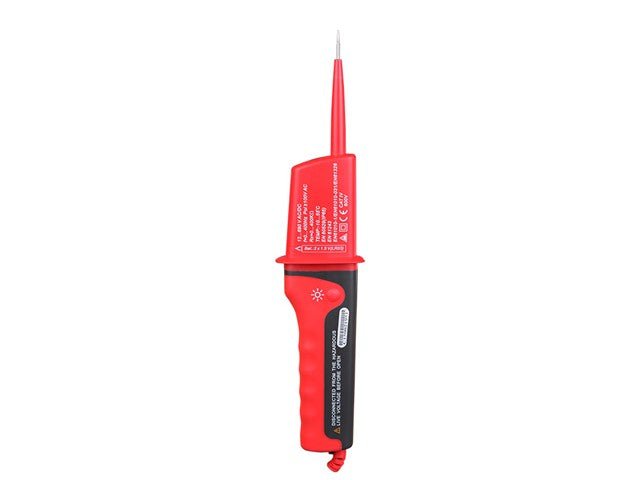

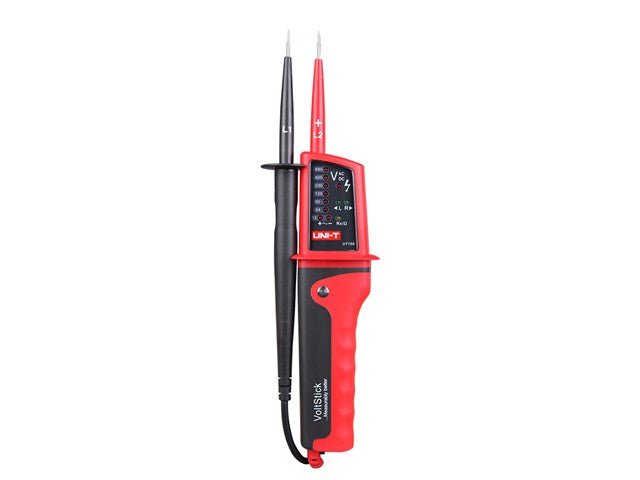

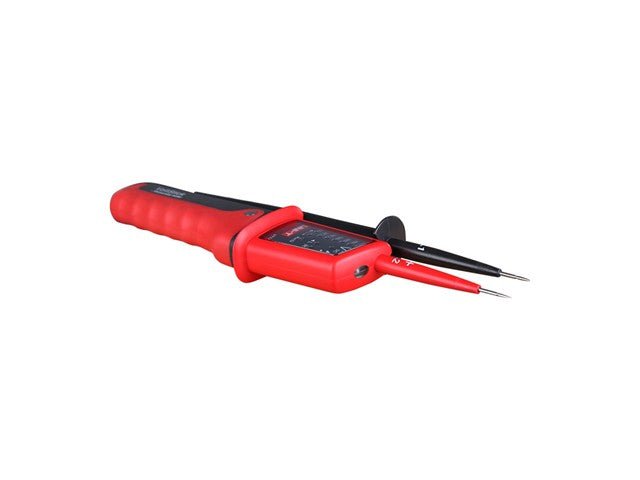

UNI-T UT15C

Name: UNI-T UT15C - Communica [Part No: UNI-T UT15C]
Brand: Uni-T
SKU: UNI-T UT15C
Price: 1428 ZAR
Availability: InStock

SKU: UNI-T UT15C

BRAND: Uni-T

In Stock
R 1,642.20_{(inc VAT)}
R 1,428.00_{(ex VAT)}

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Waterproof Type Voltage Tester IP65 Auto Range Freq 50Hz~60Hz

Waterproof Type Voltage Tester

Overview

UT15C test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electric, factory automation, etc.

Features

AC/DC voltage measurement
Continuity test
Single probe measurement
Phase position indication of three-phase AC

Specifications

	Range	UT15C
LED AC/DC voltage indication (V)	12V	0~12V
	24V	17V±2V
	50V	35V±5V
	120V	80V±15V
	230V	165V±20V
	400V	300V±30V
	690V	510V±40V
Phase rotation test	Operating Voltage: 0V~690V	Yes
Phase rotation test	Frequency: 50Hz~60Hz	Yes
Single lead (L2) voltage detection	Operating Voltage: 0V~690V	Yes
Single lead (L2) voltage detection	Frequency: 50Hz~400Hz	Yes
Continuity test	Resistance: 0~100kΩ	Yes
Continuity test	Beeper and LED light Indicator	Yes
Polarity detection	Positive & Negative	Yes
Features
Water-proof (IP65)		Yes
Auto range		Yes
Work light		Yes
Low battery indication	Short circuit two leads, LED and beeper off when the bettery is low	Yes
LCD AC/DC voltage display	24V~690V	±(3%+5)
General Characteristics
Power	1.5V battery (R03) × 2
Display	UT15C- 23mm × 12mm
Product color	Red and grey
Product net weight	210g
Product size (W x H x D)	275mm × 51mm × 30mm
Standard accessories	Batteries
Standard individual packing	Blister, English manual
Standard quantity per carton	30 pcs
Standard carton measurement	440mm × 395mm × 455mm (0.079CBM Per standard carton)
Standard carton gross weight	17kg

Downloads

Datasheet - UNI-T UT15C

Additional Information

Device	Voltage Tester
Type	Waterproof Type
