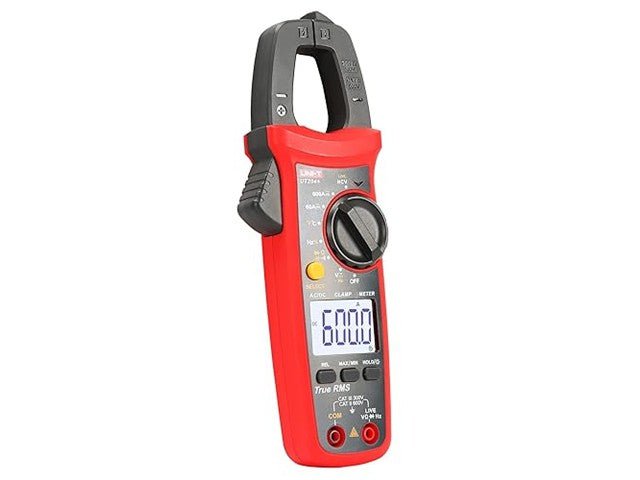

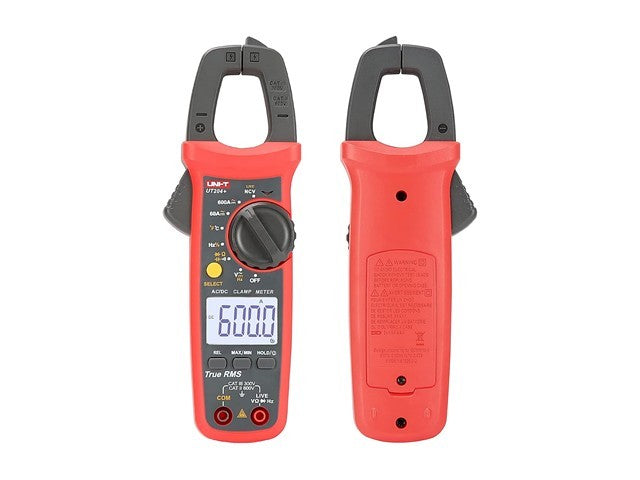

UNI-T UT204+

SKU: UNI-T UT204+

BRAND: UNI-T


Clamp Meter Digital 600V AC/DC 600A AC/DC, True RMS, Resistance 60m, Cap, Freq:10Hz~10MHZ, Temp -40~1000C, Display Count 6000, Auto Range, Jaw Capacity 28mm, Diode, Auto Power Off, Low Batt Indication, CATII 600V CATIII 300V

Digital Clamp Meter

Features

  • True RMS
  • Larger screen and display digits
  • Small current measurement
  • LCD backlight
  • 60mF large capacitance measurement (UT202A+/204+)
  • Neutral/live wire test (UT202A+/204+)

Specifications

  • AC current (A) : 0.06~600A: ±(2%+5)
  • AC current frequency (Hz) : 50Hz~100Hz
  • DC current (A) : 0.04~400A: ±(2%+5)
  • AC voltage (V) : 600V: ±(0.8%+5)
  • AC voltage frequency (Hz) : 10Hz~60kHz: ±(0.5%+2)
  • DC voltage (V) : 600V: ±(0.5%+2)
  • Resistance (Ω) : 60MΩ: ±(0.8%+2)
  • Capacitance (F) : 60mF: ±(1.5%+5)
  • Temperature (°C) -40°C~1000°C: ±(1.5%+5)
  • Frequency (Hz) : 10Hz~10MHz: ±(0.1%+4)

Features

  • Display count : 6000
  • Auto range : Yes
  • Jaw opening : 28mm
  • True RMS : Yes
  • NCV : Yes
  • Live wire test : Yes
  • Continuity test : Yes
  • Diode : Yes
  • MAX/MIN : Yes
  • Relative mode : Yes
  • Zero mode : Yes
  • Data hold : Yes
  • Low battery indication : Yes
  • Auto power off : Yes
  • Power : 1.5V battery (R03) x 2
  • Display : 37mm x 25mm
  • Product color : Red
  • Product net weight : 235g
  • Product size : 485mm x 295mm x 385mm
  • Standard accessories : Batteries, test leads, Themocouple
  • Standard individual packing : Gift box, carrying bag, English manual

Downloads

Additional Information

Device Clamp Meter
Type Digital
