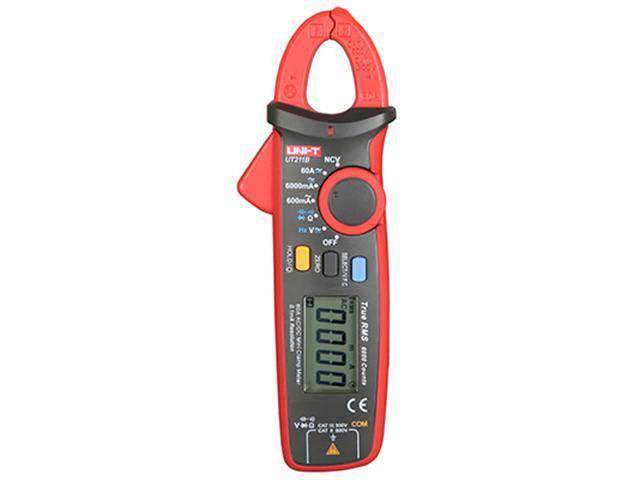

UNI-T UT211B

SKU: UNI-T UT211B

BRAND: Uni-T


Mini Clamp Meter Digital 600V AC/DC 60A AC/DC, Resistance 60m, Cap:6.2nF~62mF, DISPLAY COUNT 6000, Auto Range, True RMS, Diode, V.F.C, NCV, Zero Mode, Auto Power OFF, Continuity Buzzer, Low Battery Indication, CATII 600V CATIII 300V

Overview

UT211 series Mini Clamp Meters with the characteristics of high reliability, high security, automatic measurement range and miniaturization, which can accurately measure current signal; product chipset up VFC startup mode, the inside will pass through a specific filter circuit, filter the high frequency interference signal to ensure the accuracy of the measurement data. It is suitable for frequency conversion voltage, current with VFC, full range overload protection and unique appearance design, which becomes more superior performance of electrical instruments.

Features

  • Display Count : 6000
  • Diode : Around 3.0V
  • Auto Power Off : Around 15 minutes
  • Low Battery Indication : ≤2.5V
  • Input Impedance for DCV : ≥10MΩ

General Characteristics

  • Power : AAA 1.5V x 2
  • LCD Size : 39.3mm x 26.5 mm
  • Product Color : Red and Grey
  • Product Net Weight : 170g
  • Product Size : 175mm x 60mm x 33.5mm
  • Standard Accessories : Batteries, Test Lead,Bag
  • Standard Individual Packing : Gift Box, Carrying Bag, English Manual
  • Standard Quantity Per Carton : 40pcs
  • Standard Carton Measurement : 395mm x 390mm x 185mm
  • Standard Carton Gross Weight : 13.72kg

Specification

  • AC Current (A) : 600mA/6000mA/60A : ±(1.5%+10)
  • DC Current (A) : 6000mA/60A : ±(2%+3)
  • AC Voltage (V) : 6V/60V/600.0V/600V : ±(0.8%+3)
  • DC Voltage (V) : 600V : ±(0.7%+5)
  • 6V/60V/600.0V/600V : ±(0.7%+3)
  • Resistance (Ω) : 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ : ±(0.8%+2)
  • Capacitance (F) : 6nF/60nF/600nF/6μF/60μF/600μF/6mF/62mF : ±(4%+5)
