UNI - T UT213C - Clamp Multimeters & Accessories - 6935750521335

UNI-T UT213C

Name: UNI-T UT213C - Communica [Part No: UNI-T UT213C]
Brand: Uni-T
SKU: UNI-T UT213C
Price: 2450 ZAR
Availability: InStock

SKU: UNI-T UT213C

BRAND: Uni-T

In Stock
R 2,817.50_{(inc VAT)}
R 2,450.00_{(ex VAT)}

Collections: Test & Measurement

Type: Clamp Multimeters & Accessories

Category: Digital Clamp Meter

Digital Clamp Meter 400A AC/DC 600V AC/DC, True RMS, RES:40MΩ, CAP:40MF, Diode, MAX/MIN, FREQ:10Hz~1MHz, TEMP:-40°F~1832°F, Display Count:4000, 30mm Jaw Opening, CATIII 600V

Digital Clamp Meter

Overview

UT213 series is 400A digital clamp meter with CAT III 600V safety standards. These meters are designed for electricians and HVAC/R technicians. The built-in flashlight also makes these meters useful tools when working in dark environments.

Features

Auto range
Relative mode
NCV/continuity buzzer
Data hold/LCD backlight
Flashlight
Low battery indication: ≤3.6V
Input protection
Auto power off

Specifications

Specifications	Range	UT213C
AC current (A)	400A	±(2.5%+5)
DC current (A)	400A	±(2%+3)
AC voltage (V)	600V	±(1.2%+5)
DC voltage (V)	600V	±(0.8%+3)
Resistance (Ω)	40MΩ	±(1%+2)
Capacitance (F)	100μF
Capacitance (F)	40mF	±(4%+5)
Frequency	10Hz~1MHz	±(0.1%+4)
Temperature	-40℃~1000℃	±(1%+3)
Temperature	-40℉~1832℉	±(1%+6)
Features
Display count		4000
Auto range		Yes
Jaw opening		30mm
True RMS		Yes
Diode		Around 3.0V
NCV		Yes
Data hold		Yes
Relative mode		Yes
MAX/MIN		Yes
LCD backlight		Yes
Flashlight		Yes
Auto power off		Yes
Continuity buzzer		Yes
Low battery indication		Yes
Input protection		Yes
Input impedance for DCV		Yes
General Characteristics
Power	1.5V battery (R03) x 3
Display	38mm x 24mm
Product net weight	Red and grey
Product color	231.7g

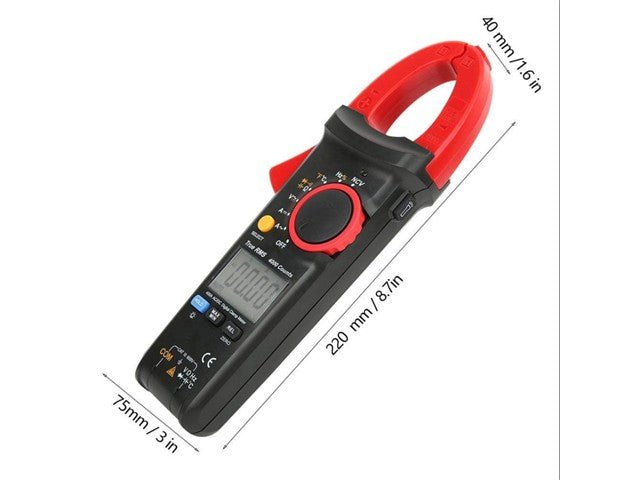

Product size	220mm x 75mm x 40mm
Standard accessories	Batteries, test leads

Downloads

Datasheet - UNI-T UT213C

Additional Information

Device	Clamp Meter
Type	Digital
