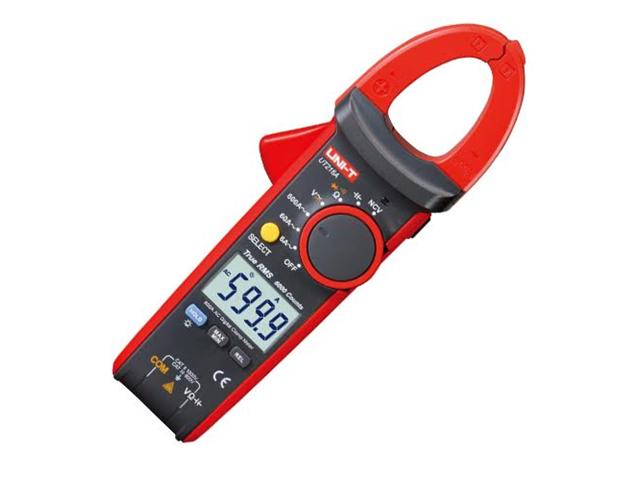

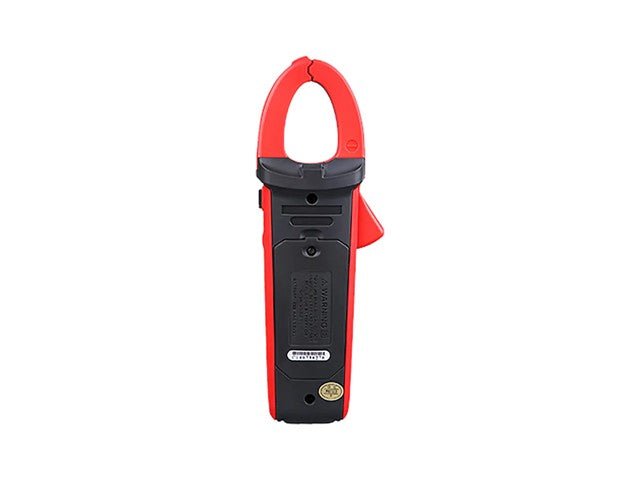

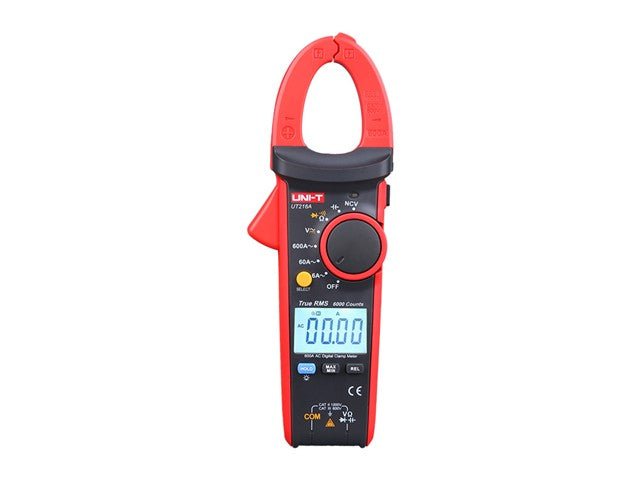

UT216 series true RMS digital clamp meter is a new-generation practical electrotechnical measurement meter which has the features of high reliability, high safety, automatic range and handheld type, has full-range overload protection and unique appearance design, is more excellent in performance, and is an ideal tool for detection, maintenance and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power and circuit equipment

• Display Count : 6000
• Auto Range : Yes
• Jaw Capacity : 30mm
• True RMS : Yes
• Diode : 3.0V Range
• NCV : Yes
• Data Hold : Yes
• Relative Mode : Yes
• MAX/MIN : Yes
• LCD Backlight : Yes
• Flashlight : Yes
• Auto Power Off : Around 15 Minutes
• Continuity Buzzer : Yes
• Low Battery Indication : ≤3.6V
• Input Protection : Yes
• Input Impedance for DCV : ≥10MΩ

Accuracy

• AC Current (A), 6A/60A/600A : ±(2.5%+5)
• AC Voltage (V), 6V/60V/600V/750V : ±(1.2%+5)
• DC Voltage (V), 600mV/6V/60V/600V/1000V : ±(0.8%+1)
• Resistance (Ω), 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60M : ±(1%+2)
• Capacitance (F), 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/59.99mF : ±(4.0%+5)

General

• Power : AAA 1.5V x 3
• LCD Size : 38mm x 24 mm
• Product Color : Red and Grey
• Product Net Weight : 280g
• Product Size : 220mm x 75mm x 40mm
• Standard Quantity Per Carton : 40 PCs
• Standard Carton Measurement : 485mm × 320mm × 385mm (0.060 CBM Per Standard Carton)
• Standard Carton Gross Weight : 23Kg
• Standard Accessories :
• • Batteries
  • Test Lead
  • Standard Individual Packing Gift Box
  • Carrying Bag
  • English Manual

1. Manual - UNI-T UT216
