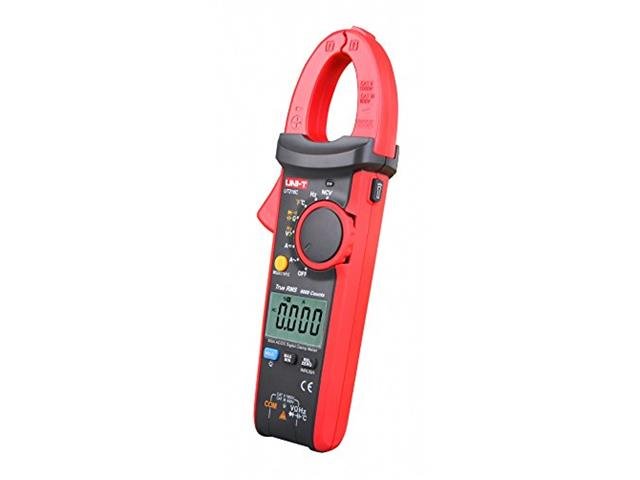

UNI-T UT216C

SKU: UNI-T UT216C

BRAND: UNI-T


Clamp Meter Digital 750V AC/1000 DC 600A AC Resistance 60M, CAP:60nF~60mF, FREQ, TEMP, DISPLAY COUNT 6000, AUTO RANGE, JAW CAPACITY 30mm, True RMS, Diode, NCV, V.F.C, AUTO POWER OFF, Continuity Buzzer, Low Bat Indication, CATII 1000V CATIII 600V

Overview

Features

Specification



  • AC current (A) : 600A ±(2.5%+5)
  • AC current frequency response : 40~400Hz
  • AC voltage frequency response : 600A ±(2.5%+5)
  • DC current (A) : 750V ±(1.2%+5)
  • AC voltage (V) : 40~400Hz
  • DC voltage (V) : 1000V ±(0.8%+1)
  • Resistance (Ω) : 60MΩ ±(1%+2)
  • Capacitance (F) : 60mF ±(4%+5)
  • Frequency (Hz) : 10Hz~1MHz ±(0.1%+4)
  • Temperature
    • -40°C~1000°C ±(2%+5)
    • -40°F~1832°F : ±(2%+10)
  • Display count : 6000
  • Auto range : Yes
  • Jaw opening : 30mm
  • True RMS : Yes
  • Diode : Around 3.0V : Yes
  • V.F.C. : Yes
  • NCV : Yes
  • Data hold : Yes
  • Relative mode : Yes
  • MAX/MIN : Yes
  • LCD backlight : Yes
  • Inrush current : Yes
  • Analog bar graph : Yes
  • Flashlight : Yes
  • Auto power off : Yes
  • Continuity buzzer : Yes
  • Low battery indication : ≤3.6V : Yes
  • Input protection : Yes
  • Input impedance for DCV : ≥10MΩ : Yes
  • Power : 1.5V battery (R03) x 3
  • Display : 38mm x 24mm
  • Product color : Red and grey
  • Product net weight : UT216A: 280g; UT216B/C/D: 231.7g
  • Product size : 220mm x 75mm x 40mm
  • Standard accessories : Batteries, test leads, point contact temperature probe
