Clamp Meter Digital 600V AC/DC 600A AC/DC LoZ ACV:600V,2000uA AC/DC, True RMS, Resistance 60m Ohm, Capacitor :60mF, Frequency:40MHZ, Display Count 6000, Manual Range, Jaw Capacity 33mm, Diode, Continuity Buzzer, Data Hold, Auto Backlight, CATIV 600V, IP54
Clamp Meter Digital 600V 600A
Overview

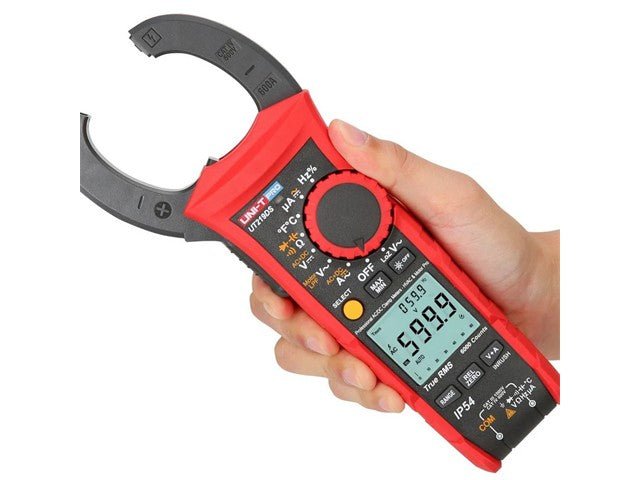

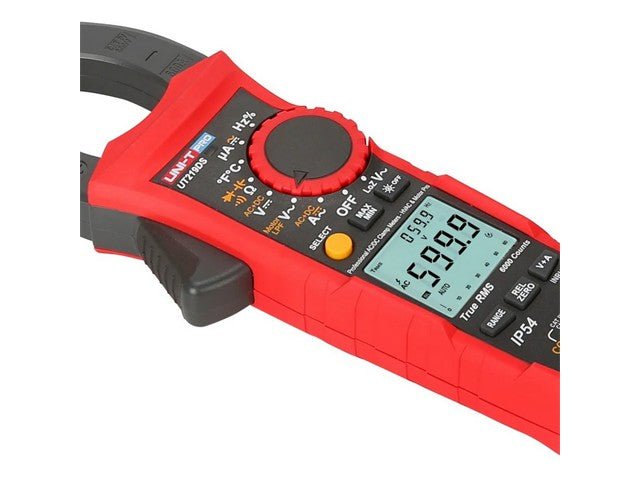

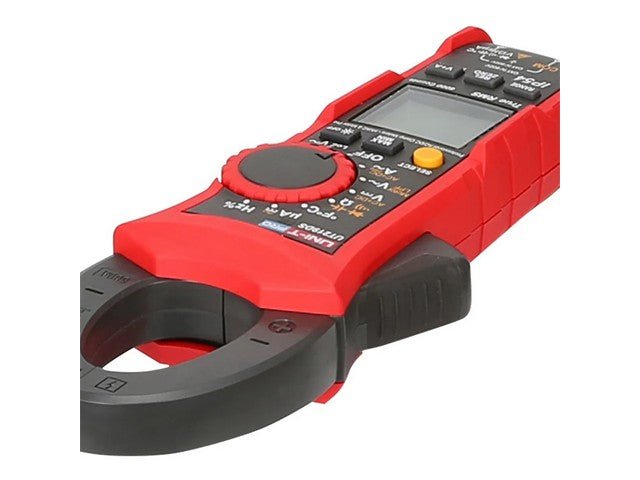

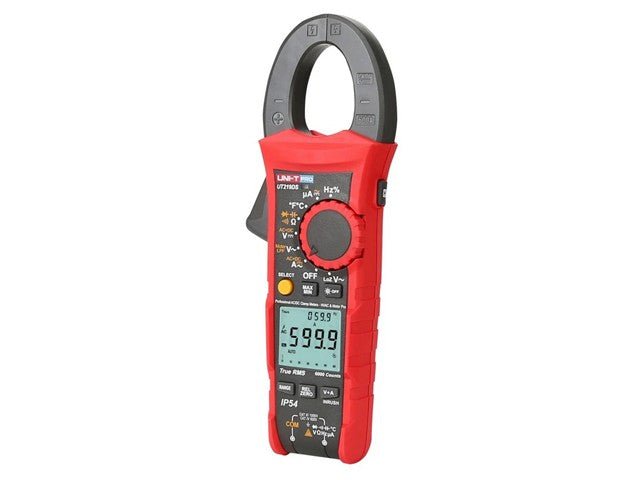

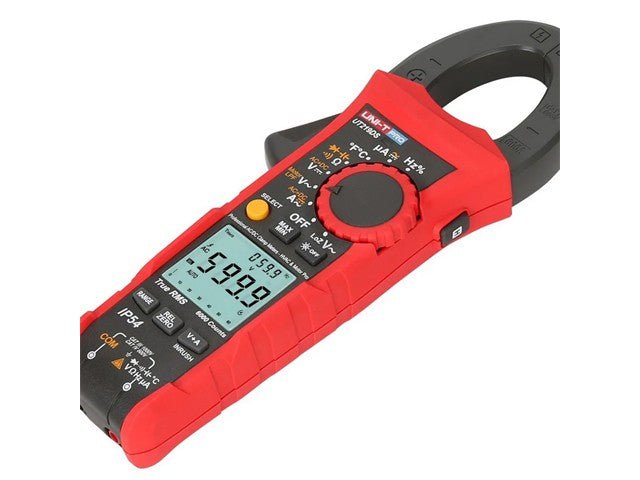

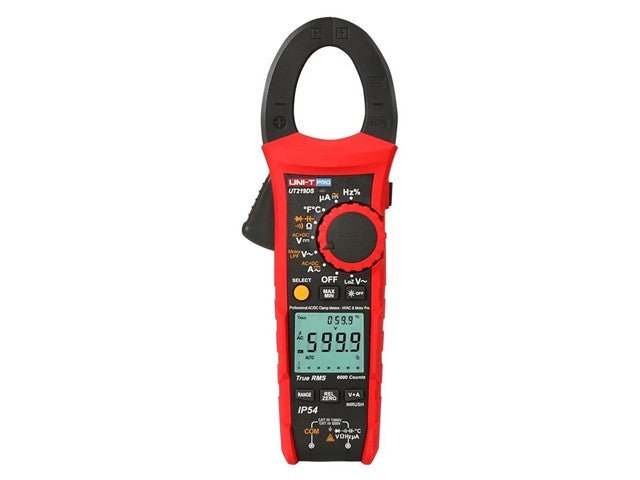

The UNI-T UT219DS represents the pinnacle of the UT219 series, combining specialized motor testing features with innovative dual-display capability for simultaneous parameter monitoring. Built on the same rugged platform with IP54 protection and 2-meter drop resistance, this premium clamp meter adds advanced measurement capabilities, faster sampling rates, and sophisticated visualization features for comprehensive electrical diagnostics.
Features
-
Dual-Display Interface: Monitor voltage and current simultaneously for power analysis
-
Enhanced Low Pass Filter: 1kHz with 3dB attenuation for accurate VFD measurements
-
V+A Simultaneous Monitoring: Dual parameter display for efficiency testing
-
Accelerated 5 Times/Second Sampling: Responsive readings for transient events
-
3-Phase Motor Sequence Testing: Prevent motor damage with proper rotation verification
-
20 Times/Second Analog Bar: Real-time visualization of rapidly changing values
-
Temperature Measurement: -40°C to 1000°C range with included temperature probe
-
True RMS Measurement: Accurate readings on variable frequency drives and electronic loads
-
DC Current Measurement: Up to 600A DC plus 2000μA precision range
-
CAT III 1000V / CAT IV 600V Safety Rating: Professional protection for industrial applications
Specifications
- Safety Rating : CAT IV 600V
- Display Count : 6000
- DC Voltage (V) : 600.0V
- AC Voltage : 600.0V
- LoZ ACV : 600.0V
- DC Current (A) : 600.0A
- AC Current (A) : 600.0A
- Resistance (Ω) : 60.00MΩ
- Capacitance (F) : 60.00mF
- DC Current : 2000uA
- AC Current : 2000uA
- Frequency (Hz) : 40.00MHz
- Diode Test/Continuity Buzzer
- Duty Cycle
- Temperature (°C/°F)
- Motor Test : three phase rotation test can identify the phases of the power supply
- LPF (1kHz 3dB decay)
- Inrush Current
- AC+DC Voltage (V)
- Dual-Display (Voltage+Current)
- Backlight
- Integrated Protection Level: IP54
- Application: HVAC/R Motor
Additional Information
| Device |
Clamp Meter |
| Type |
Digital | 600V | 600A |
