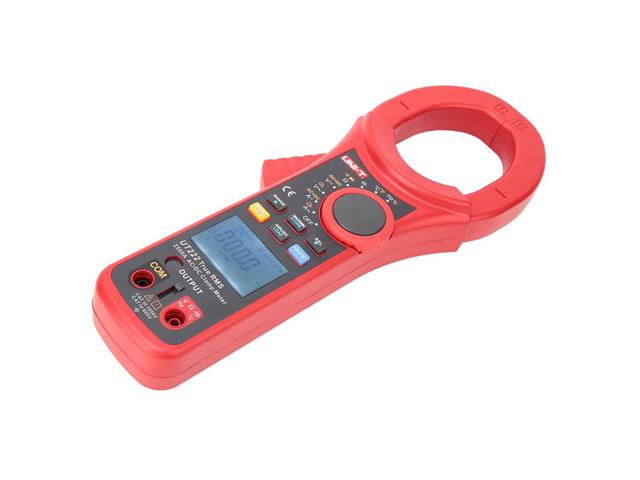

Clamp Meter Digital 1000V AC/DC 2500A AC/DC Res:60MΩ, Cap:60mF, Freq:60MHZ , TEMP:-40°C~1000°C, Display Count:6000, Auto Range/diode, Jaw:63mm, True RMS, Buzzer, Duty Cycle, Data Hold/max, Data Storage 1000, Low Pass Filter, Low Batt Indication
Clamp Meter Digital
Overview
UT220 series are 2000A AC/DC digitalclamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A (2500A for UT222).
Specifications
- AC current (A) : 2500A : ±(1.5%+5)
- DC current (A) : 2500A : ±(1.5%+5)
- AC voltage (V) : 1000V : ±(1%+3)
- DC voltage (V) : 1000V : ±(0.5%+2)
- Resistance (Ω) : 60MΩ : ±(1%+2)
- Capacitance (F) : 60mF : ±(3%+5)
- Frequency (Hz) : 60MHz : ±(0.1%+3)
- Temperature
- -40°C~1000°C : ±(1%+10)
- -40°F~1832°F : ±(1%+18)
- Display count : 6000
- Auto range/Diode : Yes
- Jaw opening : 63mm
- True RMS (AC voltage/AC current) : Yes
v
- Duty cycle : 10%~90% : Yes
- Continuity buzzer : Yes
- AC+DC : Yes
- Low pass filter : Yes
- Inrush current AC current : Yes
- Relative mode : Yes
- Data hold/MAX : Yes
- MIN/I-OUT function : Yes
- Data storage : 1000
- Analog bar graph : 61
- Full icon display : Yes
- Low battery indication : Yes
- Input impedance : ≥10MΩ : Yes
General Characterisitics
- Power : 9V battery (6F22)
- Display : 43mm x 30mm
- Product color : Red and grey
- Product net weight : 726g
- Product size : 298mm x 107mm x 47mm
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
Digital |
