UNI-T UT312A

Name: UNI-T UT312A - Communica [Part No: UNI-T UT312A]
Brand: Uni-T
SKU: UNI-T UT312A
Price: 6895 ZAR
Availability: InStock

SKU: UNI-T UT312A

BRAND: Uni-T

R 7,929.25_{(inc VAT)}
R 6,895.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: New Arrivals, Test & Measurement

Type: Environmental Test Equipment

Category: New, Vibration Tester

Vibration Tester 2.4" TFT Colour Screen, Freq:LO:10Hz-1KHz, RES:0.1m/s2, Data Hold, Auto PWR OFF, Velocity:0.1-199.9mm/s, Displacement (P-P) Range:1~1999um, Flashlight, Rechargeable Batt 3.7V 1350MAH, USB Interface:Type-C, 168x28x64mm

Vibration Tester 2.4" TFT Colour Screen

Overview

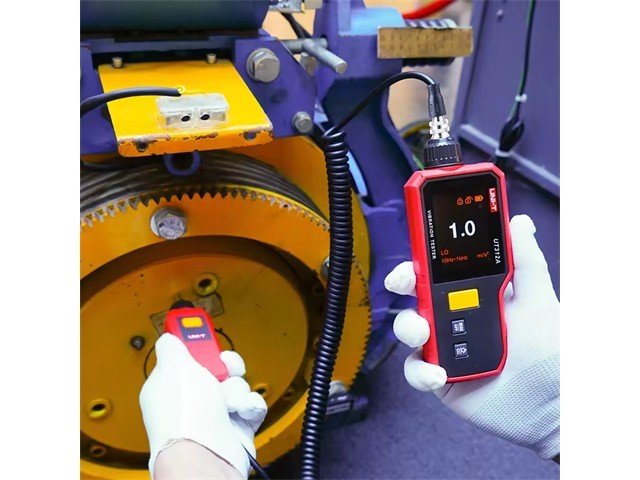

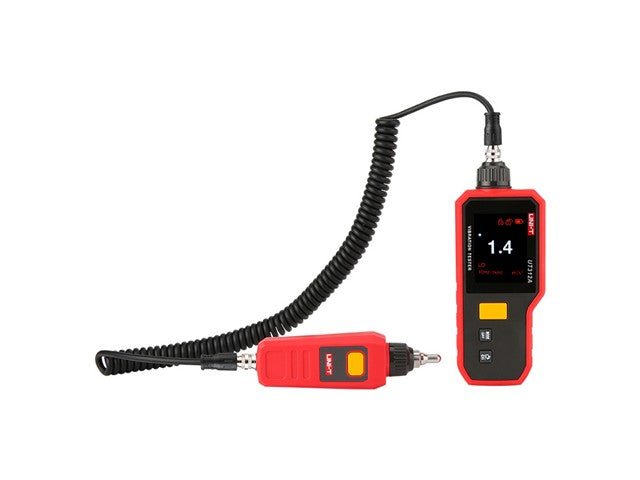

UT312A is a handheld vibration tester which consists of acceleration sensor and digital display circuit. It is mainly used to measure vibration acceleration, velocity and displacement of mechanical equipment. It has the advantages of wide range, easy operation and convenient carrying. It is an ideal inspection tool that can be used for patrol detection of equipment vibration in power , metallurgic and petrochemical industries.

Features

2.4″ TFT color LCD, full-view display
Auto-rotating screen
Data hold function
High/low frequency acceleration modes
Built-in flashlight
Auto power-off (after 5 minutes)

Specifications

Acceleration (PEAK)
- Range: 0.1 – 199.9 m/s²
- Frequency:
  - Low: 10 Hz – 1 kHz
  - High: 1 kHz – 15 kHz
- Resolution: 0.1 m/s²
- Accuracy: ±(5% + 2 digits)
Velocity (RMS)
- Range: 0.1 – 199.9 mm/s
- Frequency: 10 Hz – 1.5 kHz
- Resolution: 0.1 mm/s
Displacement (P-P)
- Range: 0.001 – 1.999 mm
- Frequency: 10 Hz – 1 kHz
- Resolution: 0.001 mm
- Accuracy: ±(10% + 2 digits)
Power & Battery
- Battery: 1350 mAh / 3.7 V lithium battery
- Charging interface: USB Type-C
- Charging time: ~3 hours
- Battery life: ~12 hours
Environmental Conditions
- Operating temperature: 0°C to 40°C
- Humidity: ≤80% RH (non-condensing)
- Storage temperature: -20°C to 60°C
Physical & General
- Size: ~168 × 28 × 64 mm
- Weight: ~364 g
- Probes: Long & short probes + magnetic base (UT312A only)
- Accessories: probes, magnetic sucker, USB-C cable, manual
Applications
- Machinery vibration testing
- Preventive maintenance
- Industrial equipment monitoring (motors, pumps, compressors)

Downloads

Datasheet - UNI-T UT312A

Additional Information

Device

Vibration Tester
