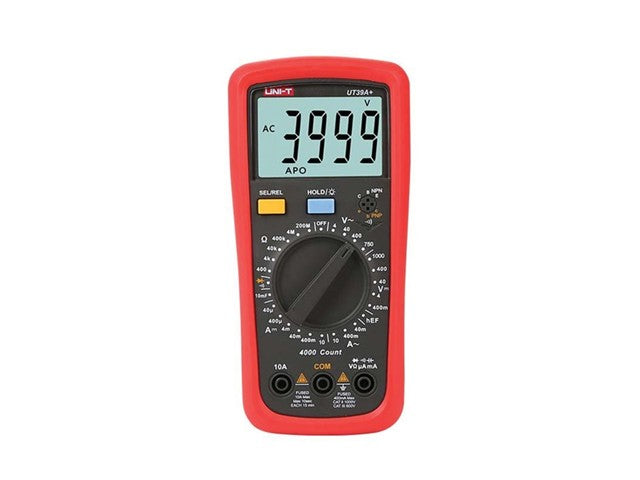

UNI-T UT39A+
SKU: UNI-T UT39A+
BRAND: Uni-T
R 495.01 (inc VAT) R 430.44 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

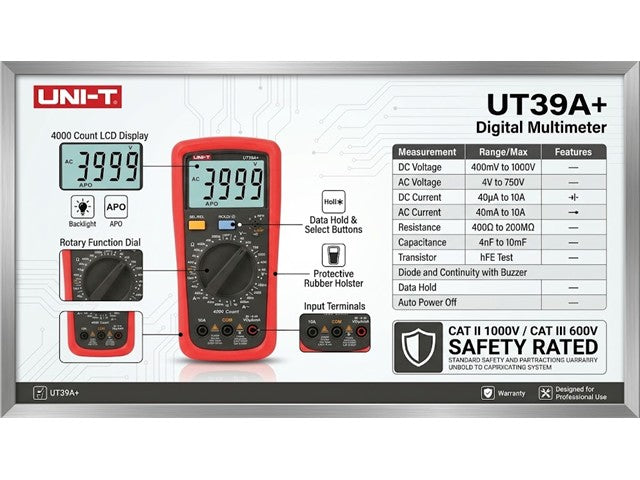

Digital Multimeter 1000VDC/750VAC, 10A AC/DC, RES:200MΩ , CAP:10mF, Display Count:4000, Data Hold, Back Light, CATII 1000V, CATIII 600V, 175x83x53mm, 330g
1000VDC/750VAC Digital Multimeter
Features
1000V DC voltage measurement
750V AC voltage measurement
10A DC/AC current measurement
Resistance/Capacitance
hFE
Diode/Continuity test
Specifications
Category Ratings
CAT II 1000V, CAT III 600V
DC Voltage (V) 400mV / 4V / 40V / 400V / 1000V
±(0.5%+5)
200mV / 2V / 20V / 200V / 1000V
AC Voltage (V) 4V / 40V / 400V / 750V
±(0.8%+3)
200mV / 2V / 20V / 200V / 1000V
DC Current (A) 40μA / 400μA / 4mA / 40mA / 400mA / 10A
±(0.8%+3)
400μA / 400mA / 10A
±(0.8%+3)
2000μA / 20mA / 200mA / 2A / 20A
AC Current (A) 40mA / 400mA / 10A
±(1%+2)
4mA / 400mA / 10A
±(1%+2)
2000μA / 20mA / 200mA / 2A / 20A
Resistance (Ω) 400Ω / 4000Ω / 40kΩ / 400kΩ / 4MΩ / 200MΩ
±(0.8%+2)
400Ω / 4000Ω / 40kΩ / 400kΩ / 4MΩ / 40MΩ
±(0.8%+2)
200Ω / 2kΩ / 20kΩ / 2MΩ / 20MΩ / 200MΩ
Capacitance (F) 10mF
±(4%+5)
2000μF
Frequency (Hz) 10Hz ~ 1MHz
10Hz ~ 2MHz
Temperature -40°C ~ 1000°C
-40°F ~ 1832°F
±(1.5%+5)
Conductance (nS) 0.1 ~ 100nS
Display Count —
4000
NCV —
General Characteristics
Power
1.5V battery (R03) × 2
Display
56.5mm × 36mm
Product Net Weight
330g
Product Size
175mm × 83mm × 53mm
Standard Accessories
Test leads, temperature probe (UT39C+/E+), English manual
Standard Individual Packing
Gift box
Standard Quantity per Carton
30 pcs
Standard Carton Measurement
390mm × 355mm × 340mm
Standard Carton Gross Weight
14.5kg
Downloads
Additional Information
The UNI-T UT39A+ Digital Multimeter offers precision measurement for DC/AC voltage up to 1000V, 10A current, and resistance up to 200MΩ. With a clear backlit display and essential features like data hold and continuity testing, this reliable tool is perfect for professionals and DIY enthusiasts. Enhance your electrical projects with this versatile multimeter that ensures accuracy and safety.
