Digital Multimeter 1000VDC/750VAC, 10A AC/DC, RES:40M, CAP, FREQ:1MHZ/400Hz, TEMP-40 °C～1000°C, Display Count:4000, Manual Range, Diode, Trans, Auto Power OFF, Continuity Test, Low Batt Indication, Data Hold, NCV
Digital Multimeter 1000VDC/750VAC
Overview

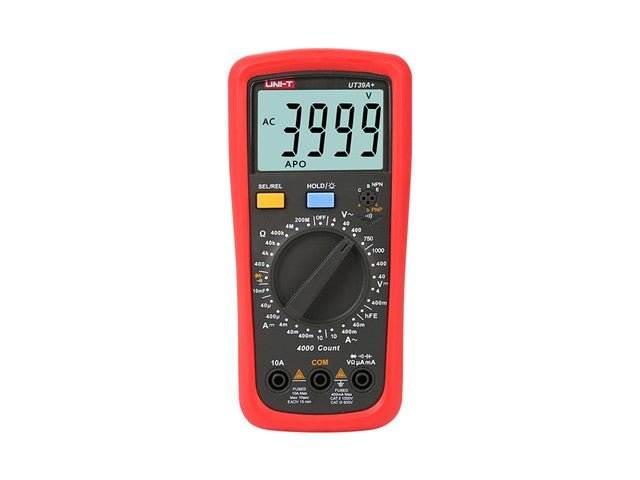

UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with its temperature measurement feature. Designed according to CAT II 1000V/CAT III 600V safety standards.
Features
- 1000V DC voltage measurement
- 750V AC voltage measurement
- 10A DC/AC current measurement
- Resistance/Capacitance
- hFE
- Diode/Continuity test

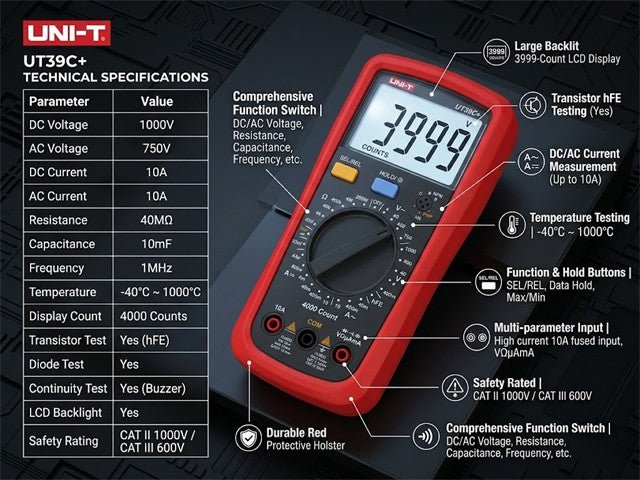

Specifications
| Specifications |
Range |
UT39C+ |
| Category ratings |
CAT II 1000V, CAT III 600V |
| DC voltage (V) |
400mV/4V/40V/400V/1000V |
±(0.5%+5) |
| 200mV/2V/20V/200V/1000V |
|
| AC voltage (V) |
4V/40V/400V/750V |
±(0.8%+3) |
| 200mV/2V/20V/200V/1000V |
|
| DC current (A) |
40μA/400μA/4mA/40mA/400mA/10A |
|
| 400μA/400mA/10A |
±(0.8%+3) |
| 2000uA/20mA/200mA/2A/20A |
|
| AC current (A) |
40mA/400mA/10A |
|
| 4mA/400mA/10A |
±(1%+2) |
| 2000uA/20mA/200mA/2A/20A |
|
| Resistance (Ω) |
400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ |
|
| 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ |
±(0.8%+2) |
| 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ |
|
| Capacitance (F) |
10mF |
±(4%+5) |
| 2000uF |
|
| Frequency (Hz) |
10Hz~1MHz |
±(0.1%+4) |
| 10Hz~2MHz |
|
| Temperature |
-40℃~1000℃ |
±(1%+4) |
| -40℉~1832℉ |
±(1.5%+5) |
| Conductance (nS) |
0.1~100nS |
|
| Display count |
|
4000 |
| NCV |
|
√ |
| General Characteristics |
| Power |
1.5V battery (R03) x 2 |
| Display |
56.5mm x 36mm |
| Product net weight |
330g |
| Product size |
175mm x 83mm x 53mm |
| Standard accessories |
Test leads, temperature probe (UT39C+/E+), English manual |
| Standard individual packing |
Gift box |
| Standard quantity per carton |
30pcs |
| Standard carton measurement |
390mm x 355mm x 340mm |
| Standard carton gross weight |
14.5kg |
Additional Information
| Device |
Multimeter |
| Type |
Digital |
The UNI-T UT39C+ Digital Multimeter is your ultimate tool for precise measurements, handling up to 1000V DC and 750V AC with ease. Featuring a backlit display and multiple functions like temperature, capacitance, and continuity tests, it's perfect for both professionals and DIY enthusiasts. Experience accuracy and reliability in one compact device, ensuring you get the job done right every time.
