UNI-T UT503PV

Name: UNI-T UT503PV - Communica [Part No: UNI-T UT503PV]
Brand: Uni-T
SKU: UNI-T UT503PV
Price: 7480 ZAR
Availability: InStock

SKU: UNI-T UT503PV

BRAND: Uni-T

R 8,602.00_{(inc VAT)}
R 7,480.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Brands, New Arrivals, Test & Measurement

Type: Environmental Test Equipment

Category: New, PV Installation Tester

PV Installation Tester 1000VDC 600VAC, Data Storage:1000 Set, Short Circuit Current IR Measurement:<1.5mA, PV IR Measurement:<1.2mA, Insulation Resistance (PV+IR) 4000MΩ, CATII 1000V, CATIII 600V, 161x117.3x63mm, IP54

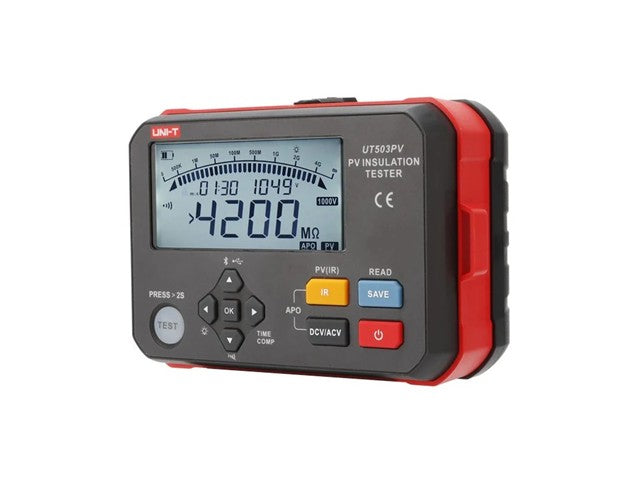

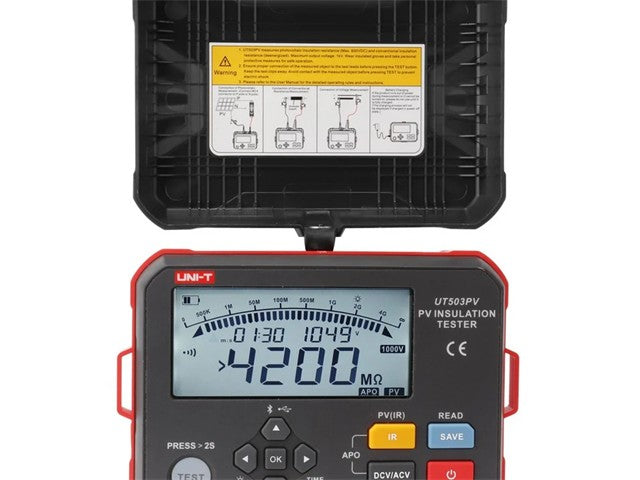

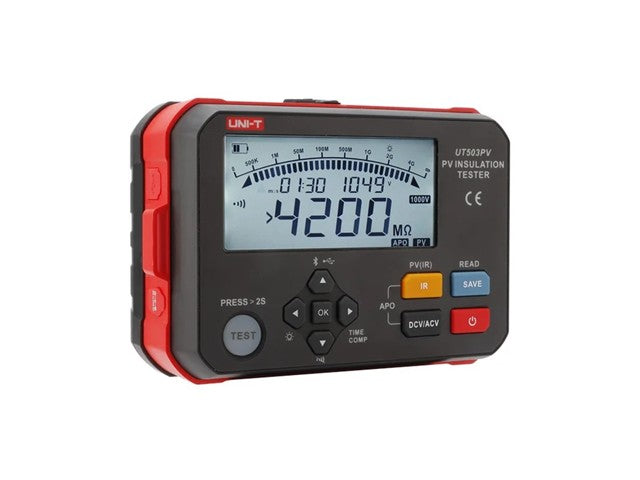

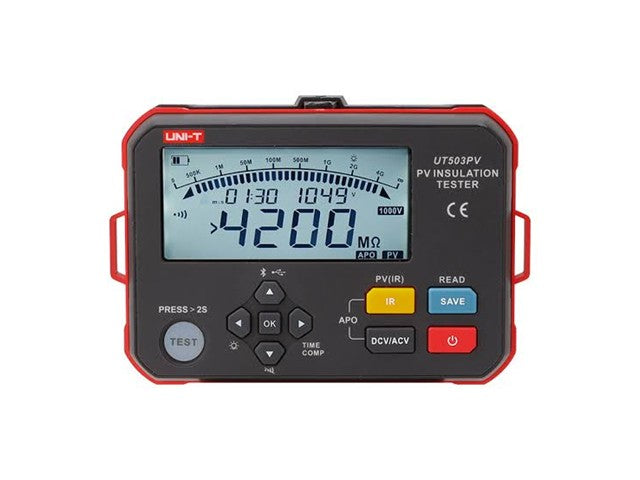

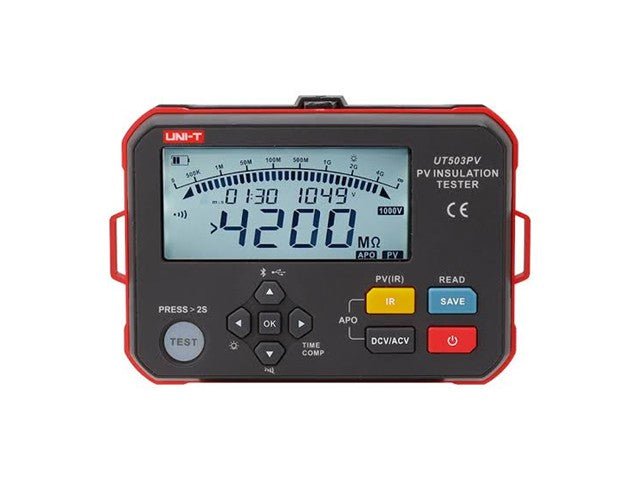

PV Installation Tester

Overview

The UT503PV is built for solar work: it measures insulation resistance on live photovoltaic systems at up to DC 1000 V, so a string can be tested without taking the array offline or short-circuiting panels — including after dark. It tests to IEC 62446 with test voltages from 125 V to 1000 V and a measurement range up to 4000 MΩ, and it's rated CAT II 1000 V / CAT III 600 V with an IP54 sealed body for outdoor use.

Stepped-voltage testing, a comparison function, automatic discharge, and a high-voltage alarm cover the safety and diagnostic basics, while 1000 result sets store on-board and transfer over USB or a Bluetooth app for commissioning reports. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.

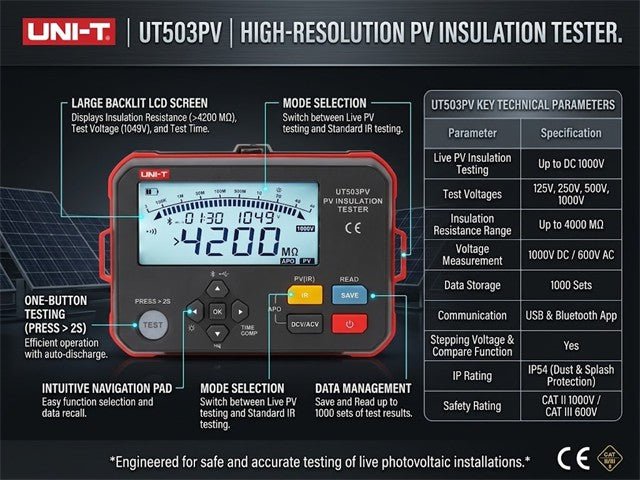

Features

Live PV insulation testing up to DC 1000 V — no array shutdown required
Test voltages: 125 V, 250 V, 500 V, 1000 V (IEC 62446)
Insulation resistance up to 4000 MΩ, accuracy ±(1.5%+5)
Stepped-voltage testing and comparison function
Automatic discharge and high-voltage alarm
1000-set storage; USB and Bluetooth app
CAT II 1000 V / CAT III 600 V; IP54 sealed body
Compact ~0.5 kg handheld for rooftop and field work

Specifications

Test Voltages	125 V / 250 V / 500 V / 1000 V
Insulation Resistance	up to 4000 MΩ
IR Accuracy	±(1.5% + 5)
PV Insulation Resistance (live)	up to 4000 MΩ, ≤ DC 1000 V
DC Voltage	5 to 1000 V, ±(1% + 4)
AC Voltage	5 to 600 V, ±(1% + 4)
Short-Circuit Current	< 1.5 mA (IR) / < 1.2 mA (PV IR)
Stepping Voltage	Yes
Auto Discharge	Yes
Compare Function	Yes
High Voltage Alarm	Yes
Data Storage	1000 sets
Data Communication	USB + Bluetooth app
Safety Rating	CAT II 1000 V, CAT III 600 V

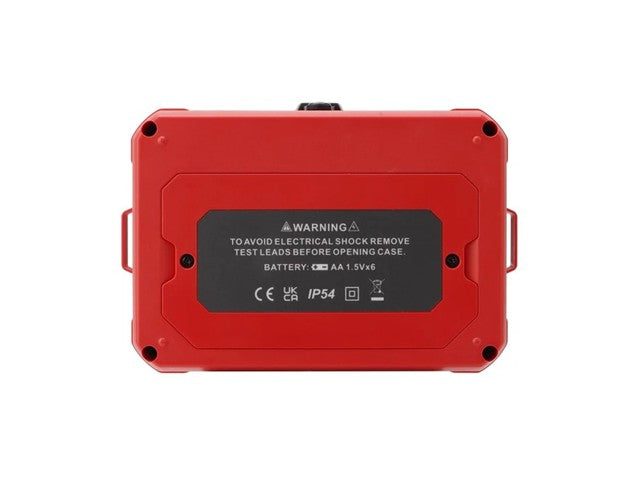

IP Rating	IP54 (cap closed)
Dimensions (L × D × H)	161 × 117.3 × 63 mm
Weight	≈0.5 kg
Certifications	CE
Country of Origin	China

Downloads

Datasheet - UNI-T UT503PV

Additional Information

Device

Tester

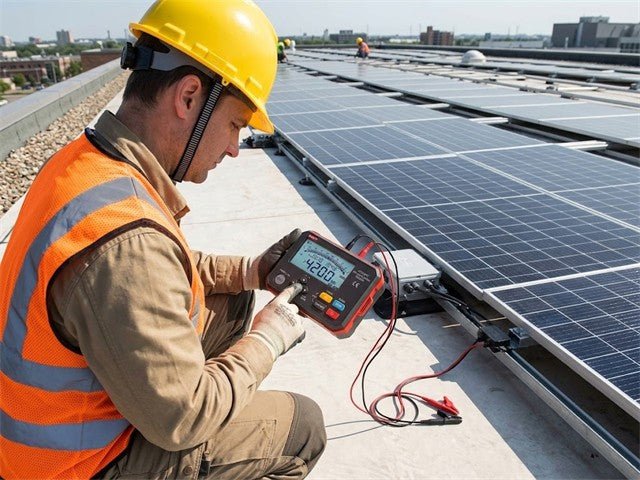

Ensure optimal performance of your solar systems with the UNI-T UT503PV PV Installation Tester. This compact, handheld device allows live insulation testing up to 1000 VDC without shutting down your array, making it perfect for rooftop and field applications. With a robust IP54 rating and advanced features like data storage and Bluetooth connectivity, the UT503PV is your essential tool for reliable solar diagnostics and maintenance.
