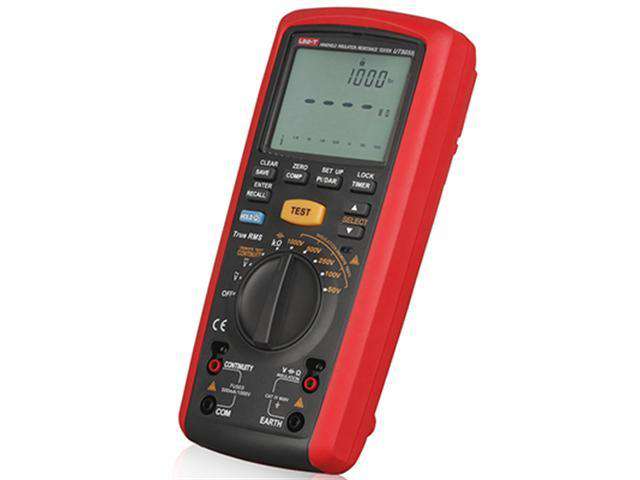

UNI-T UT505B

UT505 series of measurements can be set to add insulation multimeter functions, set the full-featured digital multimeter digital insulation tester and as one of the true RMS multimeter, battery-powered, true RMS, up to 99 sets of data storage, the accuracy of the 1.5% maximum display 6000. Suitable for all kinds of precision tools (cables, motors, transformers) test.

Test Voltage

• 50V : (0.01MΩ~50.0MΩ) ±(3%+5)
• 100V : (0.01MΩ~100.0MΩ) ±(3%+5)
• 250V : (0.01MΩ~200.0MΩ) ±(1.5%+5)
• 500V : (0.01MΩ~500MΩ) ±(1.5%+5)

1000V

• (0.1MΩ~2000MΩ) ±(1.5%+5)
• (2.0GΩ~9.9GΩ) ±(10%+3)
• (10.0GΩ~20GΩ) ±(20%+10)

Short circuit current <2mA

• 250V(R=250KΩ) : 1mA 0%~10%
• 500V(R=500KΩ) : 1mA 0%~10%
• 1000V(R=1MΩ) : 1mA 0%~10%

Load Current
• Leakage Current(A) : 10 ~ 2000μA ±(10%+3)
• 0.01Ω~20.00KΩ (approximately 5.0V/ 200mA)
• Low Resistance (Ω) : 0.01Ω~100Ω(about 5.0V/>20mA optiona) ±(1.5%+3)
• Universal Resistance (kΩ) : (0.01kΩ~1000KΩ)±(3%+5)
• DC Voltage (V) : 0,0V~600.0V ±(2%+2)
• AC Voltage (V) : 0,0V~600.0V ±(2%+3)
• Frequency (Hz) : 45 ~ 450 Hz
• Capacitance (F) 100pF ~ 1010μF
• Maximum display : 6000
• Auto Rage : Yes
• True RMS : Yes
• Step Voltage : 50% to 120% range and 10% step : Yes
• Absorption Radio (DAR) : 60S / 15s and 60s / 30s : Yes
• Polarization Index (PI) : Yes
• Timing Measurements : Yes
• High pressure alarm : Yes
• Automatic discharge : Yes
• FUSE self-test : Yes
• Analog bar : Yes
• Automatic shut-down : Yes
• Buzzer alarm : Yes
• Has remained : Yes
• data storage : Grroup 99
• Comparative : Yes
• LCD backlight : Yes
• Low voltage display : Yes

General Characteristics

• Power Supply: 1.5V Batteries LR6) × 6
• LCD Size : 78mm × 59mm
• Body Color : Red&plus;Grey
• Body Weight : 630g
• Dimensions 103mm × 225mm × 59 mm
• Standard Accessories : Test Lead, Lead, Alligator Clip, Batteries, Cloth
• Standard Packing : Box, Manual, vwarranty card
• Standard Quantity : 20
• Standard package size : 515mm × 380mm × 385mm
• Standard Gross Weight : 20Kg
• Optional : Remote Test Pen
