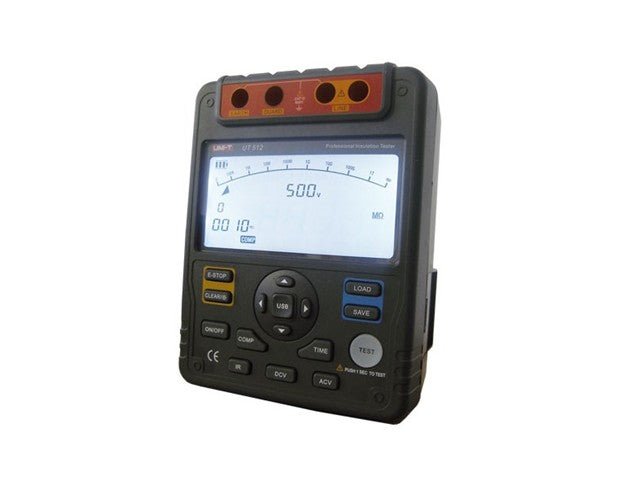

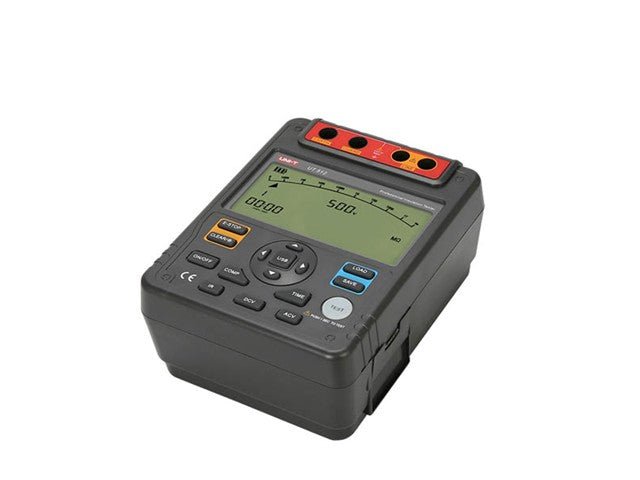

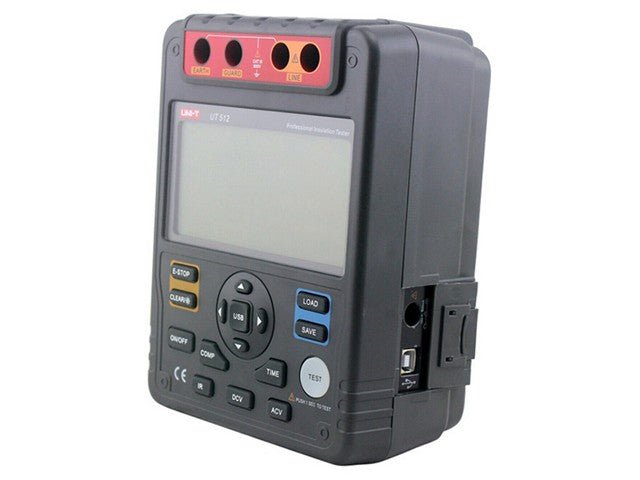

UNI - T UT512 - Environmental Test Equipment - 6935750551202

UNI-T UT512

Name: UNI-T UT512 - Communica [Part No: UNI-T UT512]
Brand: Uni-T
SKU: UNI-T UT512
Price: 4695 ZAR
Availability: InStock

SKU: UNI-T UT512

BRAND: Uni-T

R 5,399.25_{(inc VAT)}
R 4,695.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Test & Measurement

Type: Environmental Test Equipment

Category: Insulation Resistance Tester

Insulation Resistance Tester 600V AC/DC Res Test Voltage 500/1000V/2500V, Auto Range Auto PWR OFF, Low Batt Indication, Data Storage18, Comparison, DAR, PI, USB Interface, LCD Backlight, Analogue Bar GRAPH30, Overload Indication, Timer

Insulation Resistance Tester

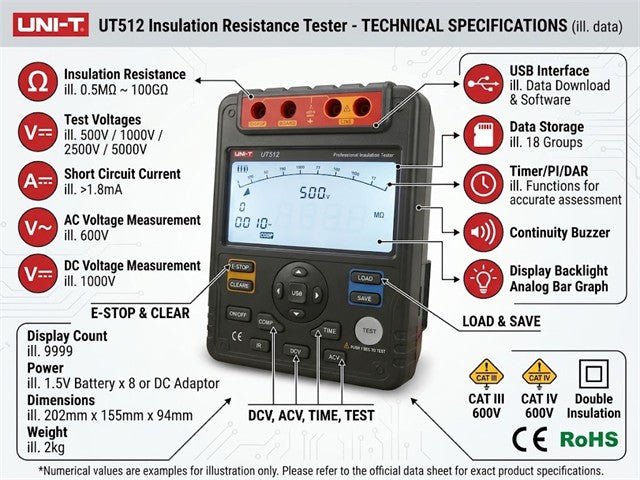

Specifications

Display count

9999

Measurement range and best precision

Insulation resistance (Ω)	Voltage	Range	Accuracy	Current
	500 V	0.5 MΩ - 5.0 GΩ	100 KΩ - 100 MΩ ±(3%+5)	1 mA - 2 mA @(500 KΩ)
	1000 V	2 MΩ - 10 GΩ	100 MΩ - 10 GΩ ±(5%+5)	1 mA - 2 mA @(1 MΩ)
	1500 V	5 MΩ - 20 GΩ	10 GΩ - 100 GΩ ±(10%+5)	1 mA - 2 mA @(1.5 MΩ)
	2500 V	10 MΩ - 100 GΩ		1 mA - 2 mA @(2.5 MΩ)
DC voltage	600 V		±(2%+5)
AC voltage	600 V		<100 V ±(2%+8) ≥100 V ±(2%+5)

Resolution

1 V

Auto Range

Yes

Other functionalities

Backlight, Auto off, Timer, Data-hold (18 slots), USB interface

Power source

8 x 1.5V battery (LR14)

Dimensions

202 x 155 x 94 mm

Weight

2 kg

Downloads

Datasheet - UNI-T UT512

Additional Information

Device	Tester
Type	Insulation \| Resistance

The UNI-T UT512 Insulation Resistance Tester is your go-to tool for reliable electrical safety assessments, featuring a wide measurement range up to 20 GΩ and 600V AC/DC capabilities. With auto-ranging, data storage, and a user-friendly LCD backlight, this tester ensures accurate readings and effortless operation. Ideal for professionals, it enhances efficiency and safety in any electrical project.
