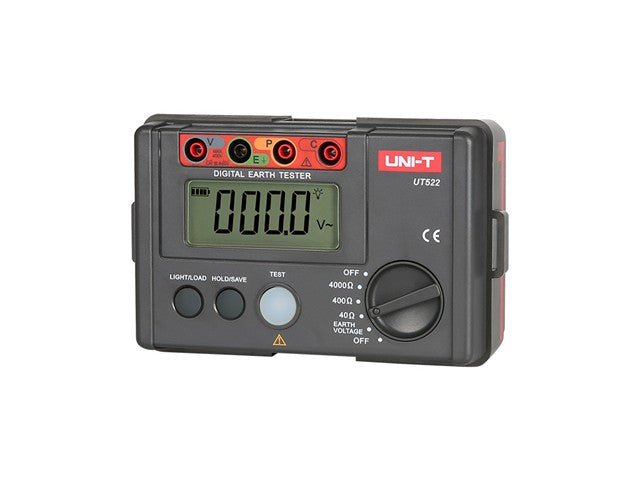

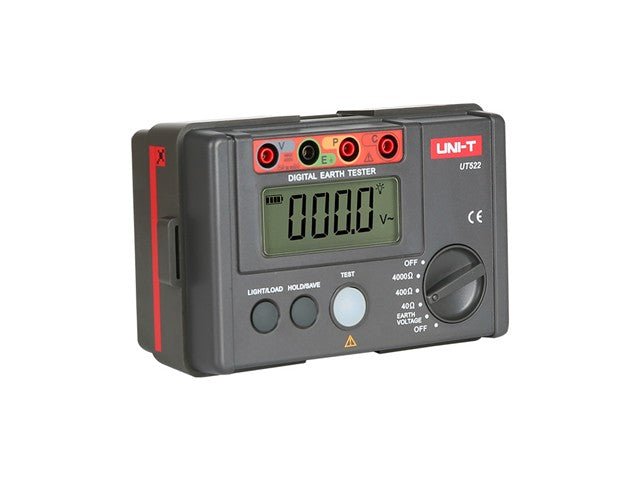

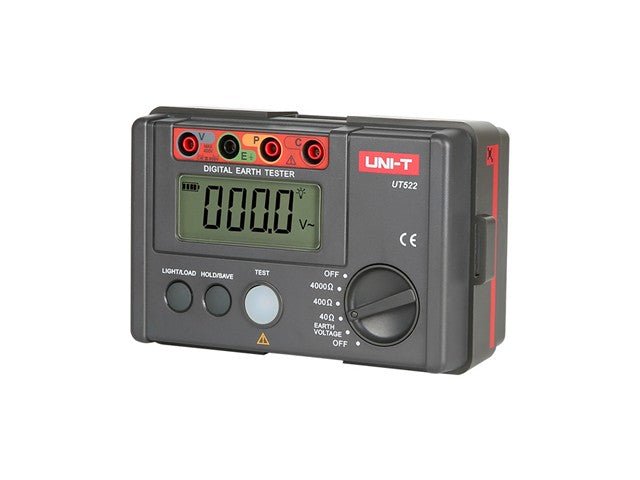

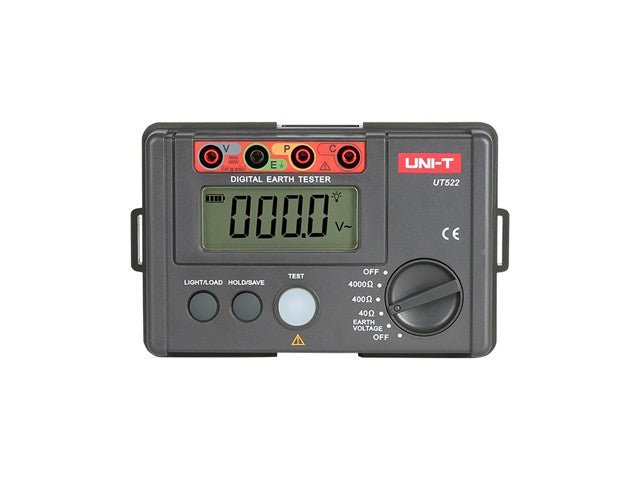

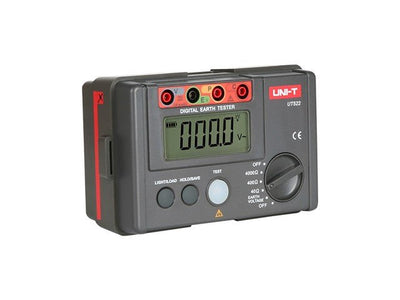

Earth Ground Tester Resistance 0~40Ω/400Ω/4000Ω, AC Earth Voltage 0～400V,FREQ:50Hz/60Hz, Display Count 4000,MANUAL RANGE,AUTO PWR OFF, Low Batt Indication, Data Hold, Data Storage 20GROUPS, LCD Backlight, Full Icon Display, Double Insulation Protection
Overview
The UT522 Tester uses a micro controller with high accuracy and reliability; it can measure every electric wire, electric installation, anti-thunder equipmentís earth resistance value of those earth system. Also, it can carry earth voltage measurement. (Note: the Tester should not be used outdoor hazard environment, like raining, thunder etc.)
Features
- Data Hold
- Backlight Display
- Data Logging : 20
- Battery Check
- Sleep Mode Around 10 Minutes
- Full Icon Display
- Over-range Display
- Contact Badness Display : C Port or E Port don't contact Display"- - - - Ω"
- Simple 2-Wires Testing
- Precision 3-Wires Testing
- Double Insulation Protection
Specifications
- Power : 1.5V Alkaline Battery(AA) x 6
- LCD Size : 70.6 mm x 34 mm
- Product Color : Grey
- Product Net Weight : 560g
- Product Size : 160 x 100 x 70.5 mm
- Standard Accessories : Battery, Three Test Lead (Green + Yellow + Red), English Manual, Simple Test Lead, Carrying Bag, Test Probe 2 pcs
- Standard Individual Packing Gift Box
- Standard Quantity Per Carton : 4 pcs
- Standard Carton Measurement : 615 x 530 x 190 mm (0.062 CBM Per Standard Carton)
- Standard Carton Gross Weight : 15kg
- Earth Resistance Testing
- 0 ~ 40Ω : ±(2%reading ±0.2Ω)
- 0 ~ 400Ω : ±(2%reading ±3 digits)
- 0 ~ 4000Ω : ±(2%reading ±3 digits)
- Earth Voltage Testing
- 0~400Vac(50/60Hz) : ±(1%reading ±6 digits)
Downloads
Additional Information
| Device |
Earth Ground Tester |
| Type |
Digital |
