Insulation Resistance Multimeter Test Voltage 50V/100V/500V/1000V/2500V, Short Circuit Current<2mA,1000VDC 600mA AC/DC, RES:40MΩ, CAP:10nF~100μF, FREQ:60Hz~1MHz, TEMP:-40°C ～ 537°C/-40°F～998°F, Display CNT 6000, Auto Range, True RMS, Diode, Auto PWR OFF,

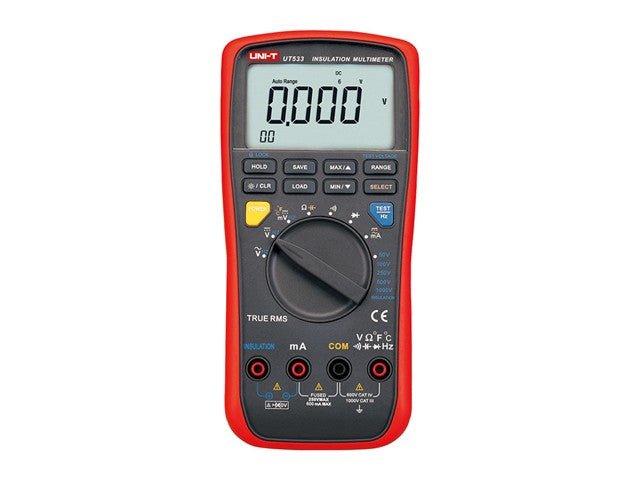

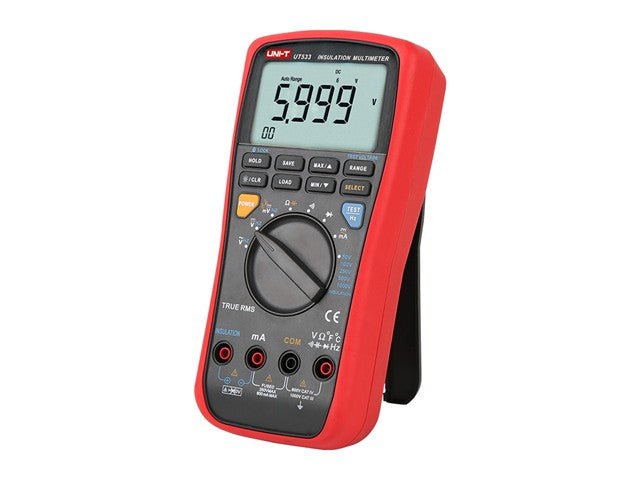

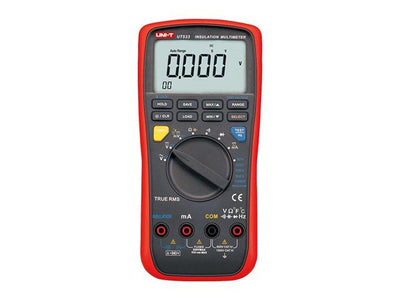

UT533 Insulation Resistance Multimeter
Overview
UT533 insulation multimeter is a fully functional digital multimeter and digital insulation tester with RMS, widely used in industrial, laboratory, home and other Applications. It features AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and also has 1000V testing voltage insulation resistance measurement function.
Features
- AC/DC voltage measurement
- AC/DC current measurement
- Insulation resistance measurement
- Resistance & Capacity test
- Frequency & Temperature test
- 1000V output voltage
- Double insulation design
Specifications
- Insulation Resistance(Ω)
- Test Voltage : 50V/100V/500V/1000V/2500V 0%~10%
- 50V : 0.1MΩ~50.0MΩ ±(3%+5)
- 100V : 0.1MΩ~100.0MΩ ±(3%+5)
- 250V : 0.2MΩ~99.9MΩ ±(3%+5) - 100MΩ~250MΩ ±(3%+5)
- 500V : 0.5MΩ~99.9MΩ ±(3%+5) - 100MΩ~500MΩ ±(3%+5)
- 1000V : 4.0MΩ~99.9MΩ ±(3%+5) - 100MΩ~999MΩ ±(3%+5) - 1.00GΩ~2.00GΩ ±(5%+5)
- Short-Circuit Current : <2mA
- DC Voltage (V) : 60mV/600mV/6V/60V/600V/1000V : ±(0.09%+6)
- AC Voltage(50Hz~1KHz) : 6V/60V/600V/1000V : ±(1%+3)
- DC Current (A) : 60mA/600mA : ±(1.0%+2)
- AC Current(50Hz~1KHz) : 60mA/600mA : ±(1.5%+2)
- Resistance (Ω) : 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/40MΩ : ±(0.9%+2)
- Capacitance (F) : 10nF/100nF/1µF/10µF/100µF : ±(3%+5)
- Frequency (Hz) : 60Hz/600Hz/6KHz/60KHz/600KHz/1MHz : ±(0.1%+3)
- Temperature (°C) : -40°C ~ 537°C : ±(1%+10)
- Temperature (°F) : -40°F~998°F : ±(1%+18)
- Display Count : 6000
- Auto Range : yes
- True RMS : yes
- Diode : yes
- Auto Power Off : yes
- Continuity Buzzer : yes
- Low Battery Indication : yes
- Data Hold : yes
- MAX/MIN : yes
- Data Logging : 99
- LCD Backlight : yes
- Full Icon Display : yes
- Power : 1.5V Alkaline Batteries(LR6)×6
- LCD Size : 81mm x 46mm
- Product Color : Red and Grey
- Product Net Weight : 505g
- Product Size : 96.7mm x 202.8mm x 46 mm
- Standard Accessories : Batterise, Test Lead, Alligator Clip, Point Contact Temperature Probe, Carrying Bag
- Standard Individual Packing : Gift Box,English Manual
