Multifunction Loop Tester 9-IN-1 Low Ohms 0.00~2Ohm Earthing Measurement Insulation Resistance 250/500/1000V Phase Rotation PSC 0kA~26kA LOOP IMP Non Trip/Trip 0.01~2000Ohm ELCB Sensitivity/Time Delay 0~440V

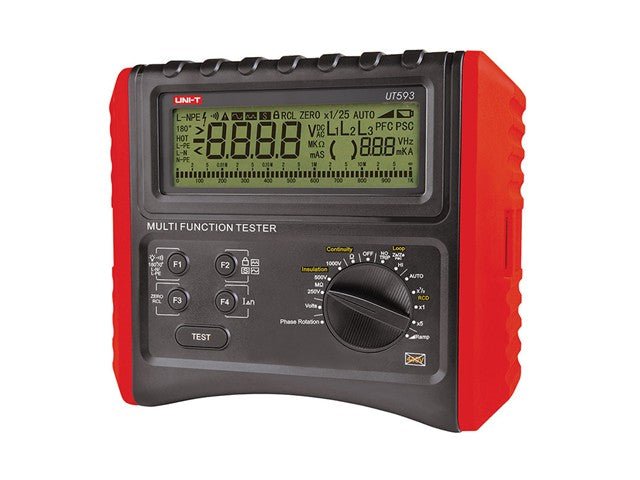

Multifunction Loop Tester
Specifications
- Insulation Resistance (Ω)
- Test Voltages : 250V/500V/1000V : ±10%
- 250V : 0.05MΩ~250MΩ : ±(5%+5)
- 500V : 0.05MΩ~500MΩ
- 1000V : 0.05MΩ~1000MΩ
- Short-Circuit Current : <2mA
- Low Resistance Continuity Test(Ω)
- Range : 0.00Ω~199Ω : ±(2%+5)
- Test Current : 0.00~2Ω: >200mA
- Line Impedance (Ω) : Range : 0.01Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~440V(45Hz~65Hz)
- Test Current : 20A
- PFC Range : 0KA~26KA
- Loop Impedance (Ω)
- Range : 0.01Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 20A
- PFC Range : 0KA~26KA
- Loop Impedance Without Tripping(Ω)
- Range : 1.00Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 15mA
- PFC Range : 0KA~26KA
- RCD :
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 10mA/30mA/100mA/300mA/500mA : ±10%
- Trip Time :
- ×1/2 I△n Range:0ms~2000ms : ±(5%+5)
- ×1 I△n Range:0ms~300ms : ±(5%+5)
- ×1 I△n Range:0ms~500ms(Selective Countdown) : ±(5%+5)
- ×5 I△n Range:0ms~40ms : ±(5%+5)
- Phase Sequence Test : Operational Voltage(Freq.) : 100V~440V(45Hz~65Hz)
- Indication : Order:L1-> L2-> L3 Positive change;L1-> L3-> L2 To reverse
- RCD Measurement RAMP Slope
- Test Current Range : 10mA/30mA/100mA/300mA/500mA : ±10%
- AC Voltage (V)
- Range : 0V~440V : ±(5%+2)
- Frequency Response : 45Hz~60Hz
- Resolution : 1V
- Display Count : 9999
- Auto Power Off : yes
- Low Battery Indication : yes
- Data Logging : yes
- LCD Backlight : yes
- Auto Half-wave Test : yes
- RCD Countdown Measurement : 30 Seconds
- RCD Half-wave Test : yes
- Phase Switch(RCD) : 0°and 180°
- Power : 1.5V Batteries(LR6) X 6
- LCD Size : 125mm X 37mm
- Product Color : Red and Grey
- Product Net Weight : 1000g
- Product Size : 210mm x 175mm x 90 mm
- Standard Accessories : Batteries, Test Lead (1 x Green, 1x Black, 1 x Red), Specialized Test Lead, Remote Control Test Lead
- Standard Individual Packing : Gift Box, Tool Box, User Manual
Downloads
Additional Information
| Device |
Loop Tester |
| Type |
Multifunction |
| Highlights |
Insulation Resistance | DC Voltage | AC Voltage | DC Current | AC Current | Resistance | Capacitance | Frequency | Temperature |
