Multifunction Loop Tester 9-IN-1 Low Ohms 0.00~2Ohm Earthing Measurement Insulation Resistance 250/500/1000V Phase Rotation PSC 0kA~26kA LOOP IMP Non Trip/Trip 0.01~2000Ohm ELCB Sensitivity/Time Delay 0~440V
Multifunction Loop Tester

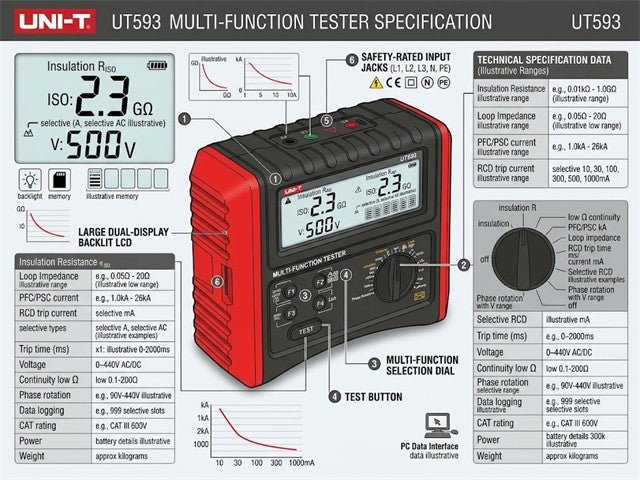

Specifications
- Insulation Resistance (Ω)
- Test Voltages : 250V/500V/1000V : ±10%
- 250V : 0.05MΩ~250MΩ : ±(5%+5)
- 500V : 0.05MΩ~500MΩ
- 1000V : 0.05MΩ~1000MΩ
- Short-Circuit Current : <2mA
- Low Resistance Continuity Test(Ω)
- Range : 0.00Ω~199Ω : ±(2%+5)
- Test Current : 0.00~2Ω: >200mA
- Line Impedance (Ω) : Range : 0.01Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~440V(45Hz~65Hz)
- Test Current : 20A
- PFC Range : 0KA~26KA
- Loop Impedance (Ω)
- Range : 0.01Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 20A
- PFC Range : 0KA~26KA
- Loop Impedance Without Tripping(Ω)
- Range : 1.00Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 15mA
- PFC Range : 0KA~26KA
- RCD :
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 10mA/30mA/100mA/300mA/500mA : ±10%
- Trip Time :
- ×1/2 I△n Range:0ms~2000ms : ±(5%+5)
- ×1 I△n Range:0ms~300ms : ±(5%+5)
- ×1 I△n Range:0ms~500ms(Selective Countdown) : ±(5%+5)
- ×5 I△n Range:0ms~40ms : ±(5%+5)
- Phase Sequence Test : Operational Voltage(Freq.) : 100V~440V(45Hz~65Hz)

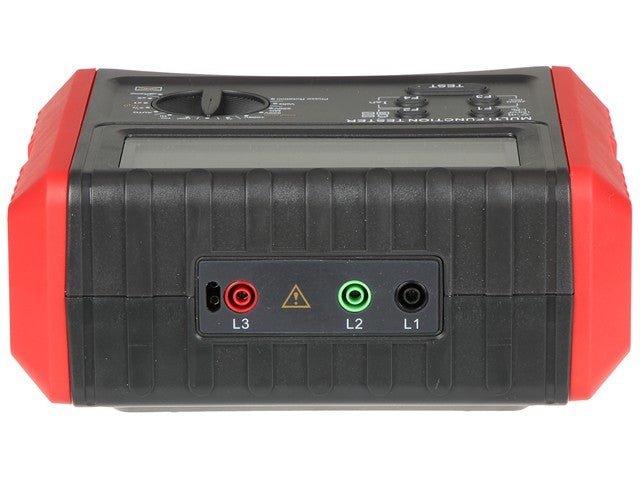

- Indication : Order:L1-> L2-> L3 Positive change;L1-> L3-> L2 To reverse
- RCD Measurement RAMP Slope
- Test Current Range : 10mA/30mA/100mA/300mA/500mA : ±10%
- AC Voltage (V)
- Range : 0V~440V : ±(5%+2)
- Frequency Response : 45Hz~60Hz
- Resolution : 1V
- Display Count : 9999
- Auto Power Off : yes
- Low Battery Indication : yes
- Data Logging : yes
- LCD Backlight : yes
- Auto Half-wave Test : yes
- RCD Countdown Measurement : 30 Seconds
- RCD Half-wave Test : yes
- Phase Switch(RCD) : 0°and 180°
- Power : 1.5V Batteries(LR6) X 6
- LCD Size : 125mm X 37mm
- Product Color : Red and Grey
- Product Net Weight : 1000g
- Product Size : 210mm x 175mm x 90 mm
- Standard Accessories : Batteries, Test Lead (1 x Green, 1x Black, 1 x Red), Specialized Test Lead, Remote Control Test Lead
- Standard Individual Packing : Gift Box, Tool Box, User Manual
Downloads
Additional Information
| Device |
Loop Tester |
| Type |
Multifunction |
| Highlights |
Insulation Resistance | DC Voltage | AC Voltage | DC Current | AC Current | Resistance | Capacitance | Frequency | Temperature |

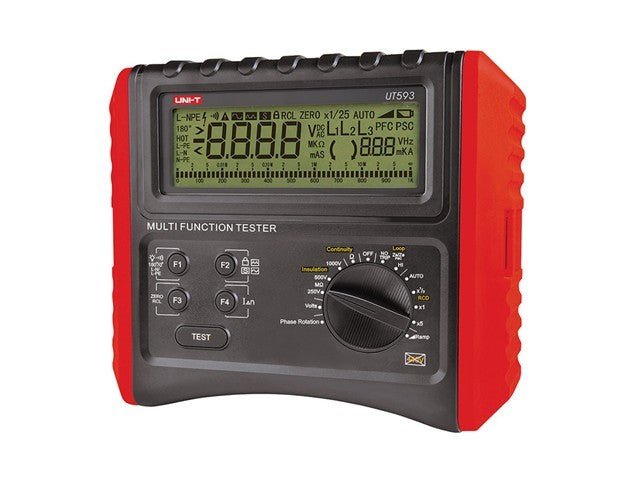

Discover the UNI-T UT593 Multifunction Loop Tester, your all-in-one solution for precise earthing and insulation measurements. With capabilities ranging from low ohm testing to RCD measurements, this versatile tool ensures safety and accuracy in electrical applications. Experience peace of mind with its easy-to-read LCD display, auto power-off feature, and efficient data logging. Perfect for professionals and DIY enthusiasts alike!
