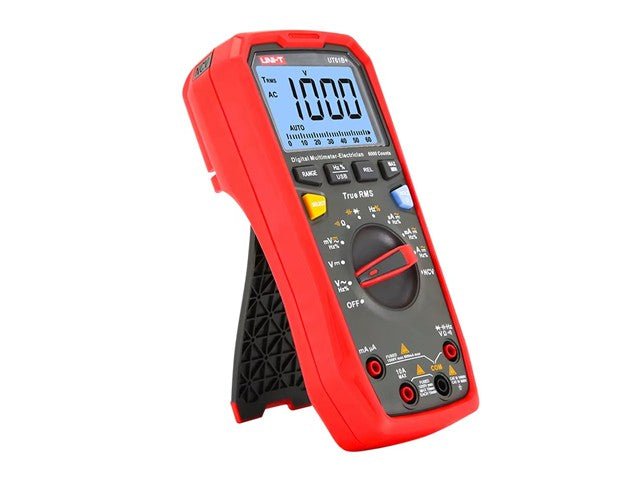

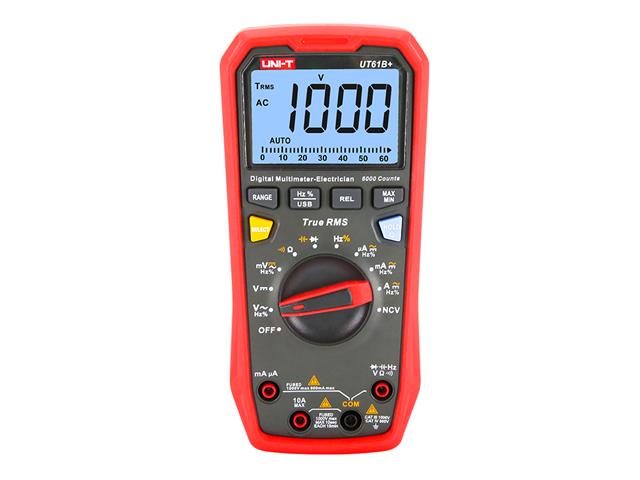

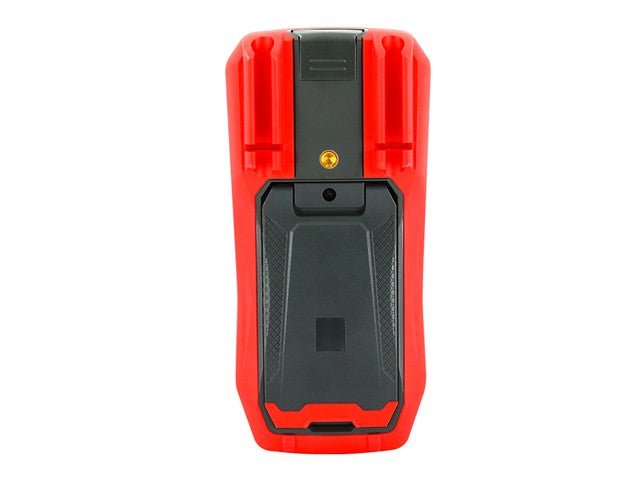

UNI-T UT61B+

Name: UNI-T UT61B+ - Communica [Part No: UNI-T UT61B+]
Brand: Uni-T
SKU: UNI-T UT61B+
Price: 1625 ZAR
Availability: InStock

SKU: UNI-T UT61B+

BRAND: Uni-T

In Stock
R 1,868.75_{(inc VAT)}
R 1,625.00_{(ex VAT)}

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Digital Multimeter 1000V 10A AC/DC , Res, Cap, Freq, Display Count 6000, True RMS, 40Hz~500Hz, Diode~Continuity Test, NCV, Data Hold/Backlight, CAT III 1000V, CAT IV 600V

Digital Multimeter 1000V

Features

True RMS
Data hold/backlight
Max/Min/Relative mode
USB communication
Diode/continuity test
NCV (audible/visual alarm)
LoZ ACV (UT61D+/UT161D)
LPF ACV/ACV+DCV/Transistor hFE (UT61E+/161E)
Peak Hold (UT61D+/61E+/161D/161E)

Specifications

Safety ratings	CAT III 1000V/CAT IV 600V
AC voltage (V)	1000V	±(1%＋3)
DC voltage (V)	1000V	±(0.5%＋3)
AC current (A)	10A	±(1.2%＋5)
DC current (A)	10A	±(1%＋2)
Resistance (Ω)	60MΩ	±(1%＋2)
Capacitance (F)	60mF	±(3%＋5)
Frequency (Hz)	10MHz	±(0.1%＋4)
Duty cycle (%)	0.1%~99.9%	±(2%＋5)
Display count		6000
Bandwidth (Hz)		40Hz~500Hz
Analog bar		31
General Characteristics
Power	1.5V battery (R03) x 4
Product net weight	350g
Product size	190mm x 90mm x 50mm
Standard accessories	Battery, gold plated test leads, USB cable, English manual

Downloads

Datasheet - UNI-T UT61B+

Additional Information

Device	Multimeter
Type	Digital
