Digital Multimeter 1000V 20A AC/DC, Res, Cap, Freq, Temp, Display Count 6000, True RMS, LoZ ACV, 40Hz~1kHz, Diode~Continuity Test, NCV, Data Hold/Backlight, CAT III 1000V, CAT IV 600V
Digital Multimeter 1000V
Features
True RMS
Data hold/backlight
Max/Min/Relative mode
USB communication
Diode/continuity test
NCV (audible/visual alarm)
LoZ ACV (UT61D+/UT161D)
LPF ACV/ACV+DCV/Transistor hFE (UT61E+/161E)
Peak Hold (UT61D+/61E+/161D/161E)
Specifications
Range
UT61D+
AC voltage (V)
1000V
±(1%＋3)
DC voltage (V)
1000V
±(0.5%＋3)
AC current (A)
10A
20A
±(1.2%＋5)
DC current (A)
10A
20A
±(1%＋2)
Resistance (Ω)
60MΩ
±(1%＋2)
220MΩ
Capacitance (F)
60mF
±(3%＋5)
220mF
Frequency (Hz)
10MHz
±(0.1%＋4)
220MHz
Duty cycle (%)
0.1%~99.9%
±(2%＋5)
Temperature (℃/℉)
-40℃~1000℃
±(1%＋3)
-40℉~1832℉
±(1%＋6)
Display count
6000
Bandwidth (Hz)
40Hz~1kHz
LPF ACV
LoZ ACV
Yes
ACV+DCV
Transistor hFE
Peak Hold
Yes
Analog bar
31
General Characteristics
Power
1.5V battery (R03) x 4
Product net weight
350g
Product size
190mm x 90mm x 50mm
Standard accessories
Battery, gold plated test leads, USB cable, temperature probe
Standard individual packing
Gift box, cloth bag
Additional Information
Device
Multimeter
Type
Digital

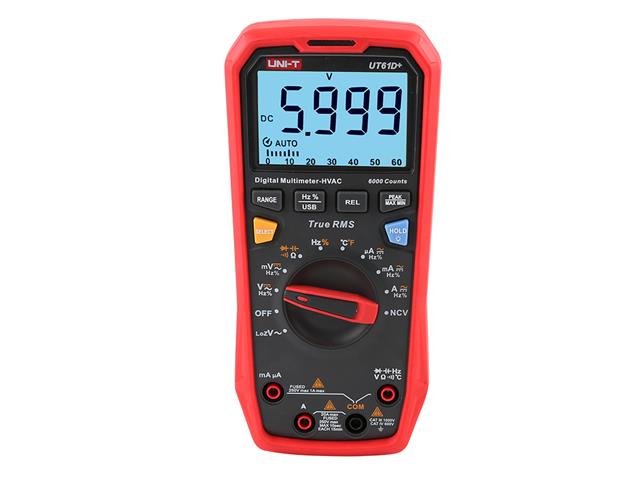

Experience precision with the UNI-T UT61D+ Digital Multimeter, designed for both professionals and hobbyists. With a 6000 count display, true RMS measurement, and versatile testing capabilities for voltage, current, resistance, and temperature, this multimeter ensures accuracy and reliability. Its features like data hold, backlight, and USB communication make it the ideal tool for any electrical task, empowering you to tackle projects with confidence.
