Solar MPPT Meter, Max Power Measurement:5~800W, Power Voltage (Vmp) 12~60V, Power Current (Imp) 0~35A, Open Circuit Voltage(Voc):12~60V, Short Circuit Current(Isc):0~35A, Data Hold, 143x74x25mm
Solar MPPT Meter
Overview

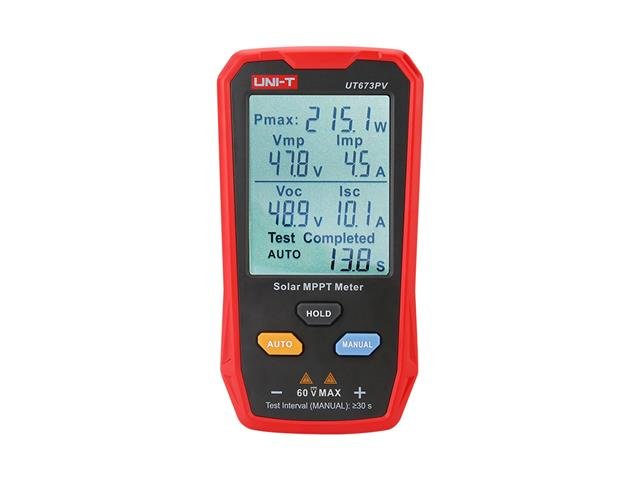

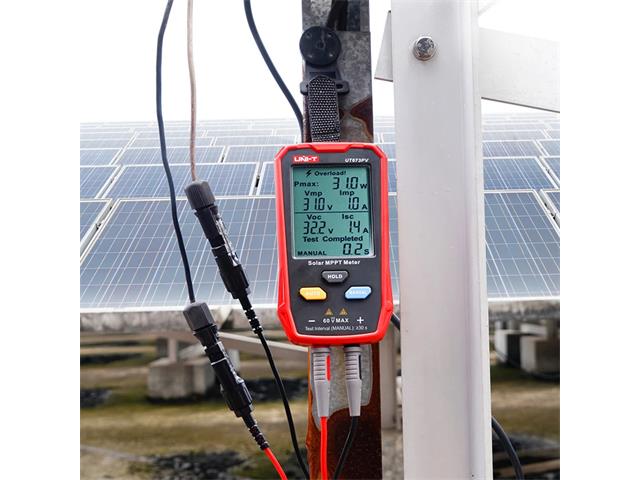

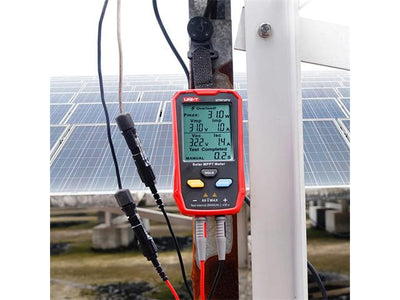

UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current. Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
Features
- Maximum power test (Pmax) 5～800W
- Peak power voltage (Vmp) 12～60V
- Peak power current (Imp) 0～35A
- Open circuit voltage (Voc) 12～60V
- Short circuit current (Isc) 0～35A
- Large screen and multiple result display
- No batteries needed, powered by the solar panel

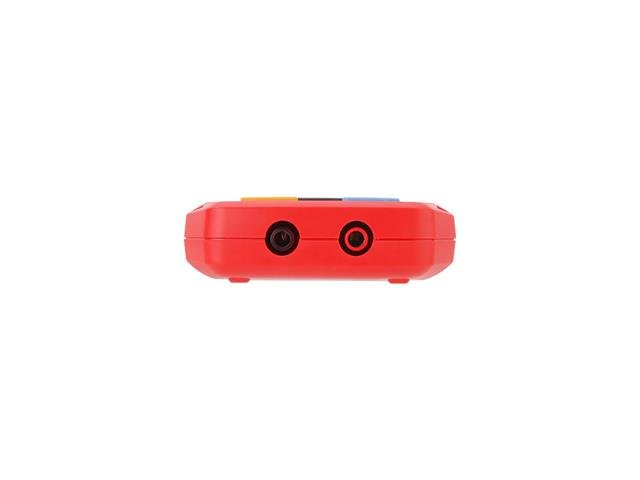

- Equipped with MC4 test lead

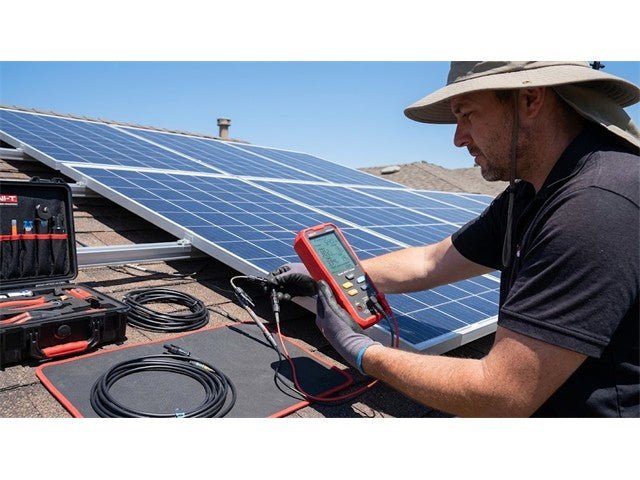

- Portable and convenient
Specifications
| Max power measurement |
5～800W |
±(1.0%＋10) |
| Max power current(DC) |
0～35A |
±(1.5%＋5) |
| Max power voltage(DC) |
12～60V |
±(1.5%＋5) |
| Open circuit current(DC) |
12～60V |
±(1.5%＋5) |
| Short circuit current(DC) |
0～35A |
±(1.5%＋5) |
| General Features |
| Display |
Large LCD (52 * 66mm) |
Reverse polarity
connect Protection |
Yes |
| Over voltage protection |
Yes |
| Over current protection |
Yes |
| Over temperature protection |
Yes |
| Over power protection |
Yes |
| Manual/Auto MPPT test |
Yes |
| Data hold |
Yes |
| Power supply |
No battery needed, powered by solar panel |
| Ovecategory |
CAT 0 60V |
|
| Certificate |
CE, cETLus, RoHS |
Downloads
Additional Information
| Device |
Meter |
| Type |
Solar | MPPT |
