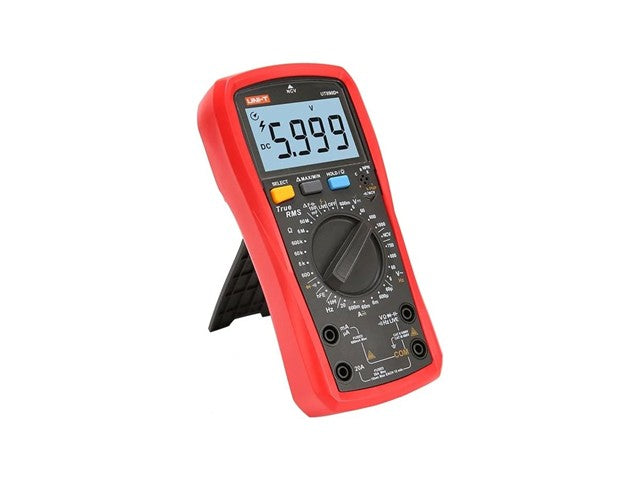

UNI-T UT890D+ - Multimeters & Voltmeters - 5901890059978

UNI-T UT890D+

Name: UNI-T UT890D+ - Communica [Part No: UNI-T UT890D+]
Brand: Uni-T
SKU: UNI-T UT890D+
Price: 665 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: UNI-T UT890D+

BRAND: Uni-T

R 764.75_{(inc VAT)}
R 665.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Digital Multimeter 1000VDC/750VAC,20A AC/DC, RES:60M, CAP6.000nF~100.0mF, FREQ:9.999Hz～9.999MHz, Display Count 6000, Max/Min, True RMS, Diode, Buzze R, hFE, NCV, REL, Data Hold, LCD Backlight, Low Battery Indication, Auto Power OFF

Digital Multimeter 1000VDC/750VAC

Specifications

DC Voltage : 600mV/6V/60V/600V/1000V : ±(0.5%+2)
AC Voltage : 6V/60V/600V/750V : ±(0.8%+3)
ACV Frequency : 10Hz～10kHz : ±（0.1%+5)
DC Current : 60uA//600uA/6mA/60mA/600mA/20A : ±(0.8%+8)
AC Current : 60uA/600uA/6mA/60mA/600mA/20A : ±(1%+12)
Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ : ±(0.8%+3)
Capacitor : 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF : ±(3%+10)
Frequency : 9.999Hz～9.999MHz : ±(1.0%+5)

Fetures

Display Count : 6000
Manual Range : Yes
NCV : Yes
hFE : Yes
Diode Test : Yes
Continuity Test : Yes
Live : Yes
True RMS : Yes
Fuse blowing alarm : Yes
Acousto-optic indication(NCV/continuity) : Yes
High voltage false detection : 1000Vrms : Yes
Current (AC/DC) mode memory : Yes
Over-current alarm : ≥20A : Yes
Low Battery Indication : ≤2.5V : Yes
Data Hold : Yes
REL : Yes
Max/Min : V, A : Yes
Auto Power Off : 15Min : Yes
Back light : 30s : Yes
Operation Temperature : 0℃～40℃
Safety : CAT Ⅱ 1000V/CAT III 600V

General Characteristics

Power : 1.5V x 2
Product color : Red and Gray
Product Net Weight : 346g
Product Size : 183mm x 88mm x 56mm

Additional Information

Device	Multimeter
Type	Digital \| 1000VDC/750VAC

The UNI-T UT890D+ Digital Multimeter is your go-to tool for accurate measurements up to 1000VDC and 750VAC. With features like True RMS, a 6000 display count, and auto power off, it ensures precision and convenience for all your electrical tasks. Whether you're a DIY enthusiast or a professional, this multimeter offers reliability and ease of use for diagnosing circuits and components effectively.
