Digital Multimeter 2000V ACDC, Variable Freq Voltage (VFC):600V, High Voltage Freq:10Hz~10kHz, res:60MΩ, CAP:60mF, Display Count:6000, Auto/Manual Range, NCV, Live Test, Diode, Continuity, Data Hold, MAX/MIX, CAT II 1000V/CATIII 600V
Digital Multimeter 2000V ACDC
Overview

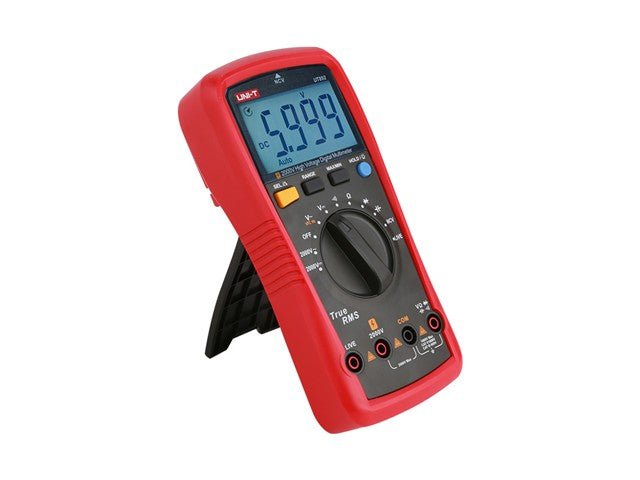

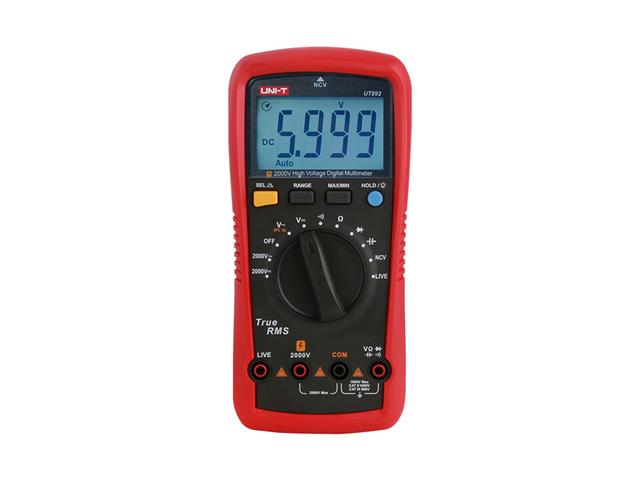

UT892 High Voltage Digital Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently.
This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can also hold test probes for one-handed
Features
- 6000 counts True RMS
- 2000V AC/DC voltage measurement
- VFC 600V voltage measurement
- LIVE test
- 60MΩ resistance/60mF capacitance
- 10kHz frequency measurement
- Test lead indication
- Backlight
- NCV
- CAT II 1000V/CAT III 600V
Specifications
| Specifications |
Range |
UT892 |
| DC voltage (V) |
6.000V/60.00V/600.0V/1000V/2000V |
±(0.5%+3) |
| AC voltage (V) |
6.000V/60.00V/600.0V/1000V/2000V |
±(1.0%+3) |
| Variable frequency voltage (VFC) |
600V |
±(5%) |
| Frequency (Hz) |
10Hz~10kHz |
±(0.5%+2) |
| Resistance (Ω) |
600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ |
±(0.5%+5) |
| Capacitance (F) |
60.00nF/600.0nF~600.0μF/6000μF/60mF |
±(3.0%+10) |
| Features |
| Display counts |
|
6000 |
| Auto/manual range |
|
YES |
| NCV |
|
YES |
| LIVE test |
|
YES |
| Diode |
|
YES |
| Continuity |
|
YES |
| Low battery indication |
≤ Approximately 2.5V |
YES |
| Data hold |
|
YES |
| Max/Min |
|
YES |
| Relative mode |
|
YES |
| Auto power off |
Approximately 15 minutes |
YES |
| Backlight |
|
YES |
| Safety rating |
CAT II 1000V/CAT III 600V |
YES |
| General Characteristics |
| Power |
AA 1.5V x2 |
| Product color |
Red+Gray |
| Product net weight |
350g (Including batteries) |
| Product size |
187*88*56mm |
| Standard accessories |
English manual, test leads, batteries. |
| Standard individual packing |
Gift box |
| Standard quantity per carton |
40 pcs |
| Standard carton measurement |
645×450×350mm |
Downloads
Additional Information
| Device |
Digital Multimeter |
| Type |
2000V ACDC |
