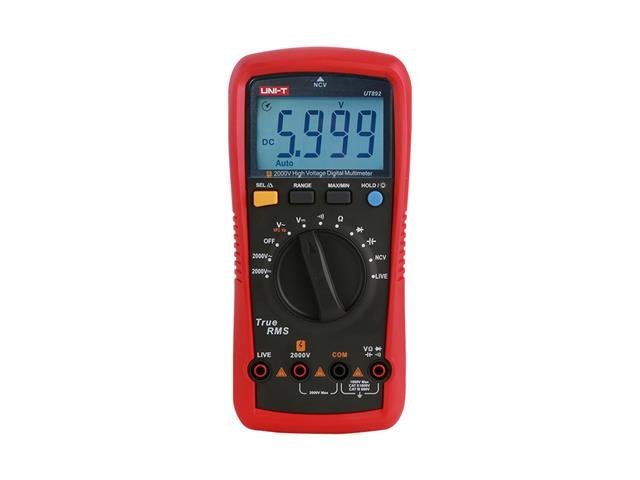

UNI-T UT892

Name: UNI-T UT892 - Communica [Part No: UNI-T UT892]
Brand: Uni-T
SKU: UNI-T UT892
Price: 1386.96 ZAR
Availability: InStock

SKU: UNI-T UT892

BRAND: Uni-T

R 1,595.00_{(inc VAT)}
R 1,386.96_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Digital Multimter 2000V ACDC, Variable Freq Voltage (VFC):600V, High Voltage Freq:10Hz~10kHz, res:60MΩ, CAP:60mF, Display Count:6000, Auto/Manual Range, NCV, Live Test, Diode, Continuity, Data Hold, MAX/MIX, CAT II 1000V/CATIII 600V

Digital Multimter 2000V ACDC

Overview

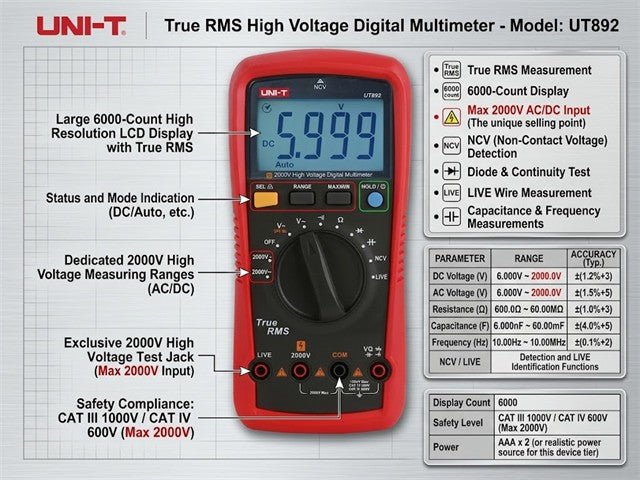

UT892 High Voltage Digital Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently.

This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can also hold test probes for one-handed

Features

6000 counts True RMS
2000V AC/DC voltage measurement
VFC 600V voltage measurement
LIVE test
60MΩ resistance/60mF capacitance
10kHz frequency measurement
Test lead indication
Backlight
NCV
CAT II 1000V/CAT III 600V

Specifications

Specifications	Range	UT892
DC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(0.5%+3)
AC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(1.0%+3)
Variable frequency voltage (VFC)	600V	±(5%)
Frequency (Hz)	10Hz~10kHz	±(0.5%+2)
Resistance (Ω)	600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ	±(0.5%+5)
Capacitance (F)	60.00nF/600.0nF~600.0μF/6000μF/60mF	±(3.0%+10)
Features
Display counts		6000
Auto/manual range		YES
NCV		YES
LIVE test		YES
Diode		YES
Continuity		YES
Low battery indication	≤ Approximately 2.5V	YES
Data hold		YES
Max/Min		YES
Relative mode		YES
Auto power off	Approximately 15 minutes	YES
Backlight		YES
Safety rating	CAT II 1000V/CAT III 600V	YES
General Characteristics
Power	AA 1.5V x2
Product color	Red+Gray
Product net weight	350g (Including batteries)
Product size	1878856mm
Standard accessories	English manual, test leads, batteries.
Standard individual packing	Gift box
Standard quantity per carton	40 pcs
Standard carton measurement	645×450×350mm

Downloads

Datasheet - UNI-T UT892

Additional Information

Device	Digital Multimter
Type	2000V ACDC

The UNI-T UT892 Digital Multimeter offers precise AC/DC voltage measurements up to 2000V, ensuring safety and efficiency with its high voltage input and overload protection. With features like VFC mode, NCV detection, and a 6000 count display, this versatile tool is perfect for professionals and DIY enthusiasts alike, making electrical testing easy and reliable.
