Function/Arbitrary Waveform Generator 4.3”TFT LCD Screen, 2CH 30MHz, Sampling Rate 200MS/s, 14 bits, 172x90x68mm, 100~240VAC, 50Hz/60Hz, 3.8kg

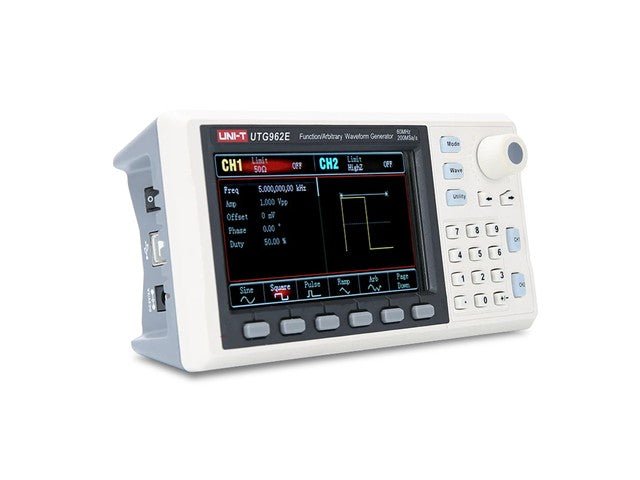

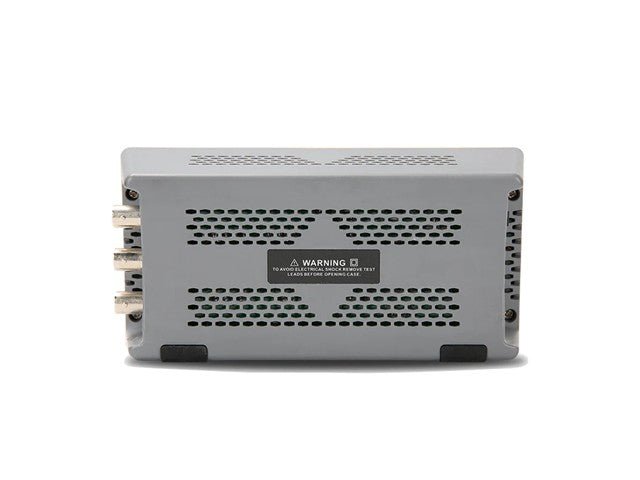

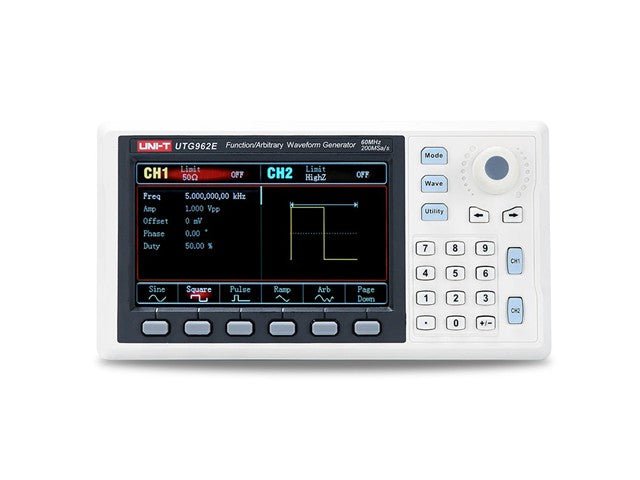

Function/Arbitrary Waveform Generator
Feature
- Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
- Output frequency range: 1μHz-30MHz/60MHz
- High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz
- Two equivalent-performance channels
- 4.3 inches TFT LCD
Specifications
- Channel : 2
- Max frequency : 30MHz
- Sampling rate : 200MS/s
- Vertical resolution : 14 bits
- Waveforms : Sine, square, pulse, ramp, noise, DC, arbitrary
- Sweep modes : Logarithmic, linear
Frequency Characteristics
- Sine : 1μHz~30MHz
- Square : 1μHz~15MHz
- Ramp : 1μHz~400kHz
- Pulse : 1μHz~15MHz
- Arbitrary : 1μHz~10MHz
- Resolution : 1μHz
- Accuracy
- Within 90 days ± 50ppm
- Within 1 year ± 100ppm
- 18℃~28℃
Output Characteristics
- Impedance : 50Ω/High Z
- Amplitude range : 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
- DC offset range (AC+DC) : ±5V (50Ω); ±10V (high Z)
- Amplitude resolution : 1mV
General Characterisitics
- Power : 100~240VAC, 50Hz/60Hz
- Display : 4.3”TFT LCD (480×272)
- Product color : White and grey
- Product net weight : 0.33kg
- Product size : 172mm x 90mm x 68mm

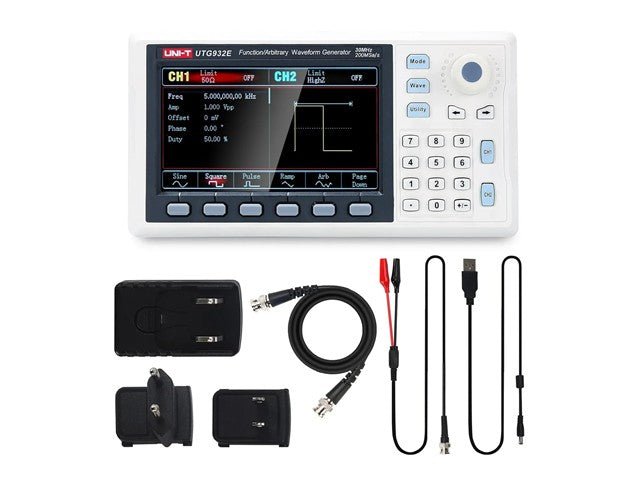

- Standard accessories : USB interface cable, power cord, BNC cable with alligator clips
- Standard individual packing : Carton box
- Standard carton measurement : 435mm x 360mm x 125mm
- Standard carton gross weight : 3.8kg
